X-Dream 2m

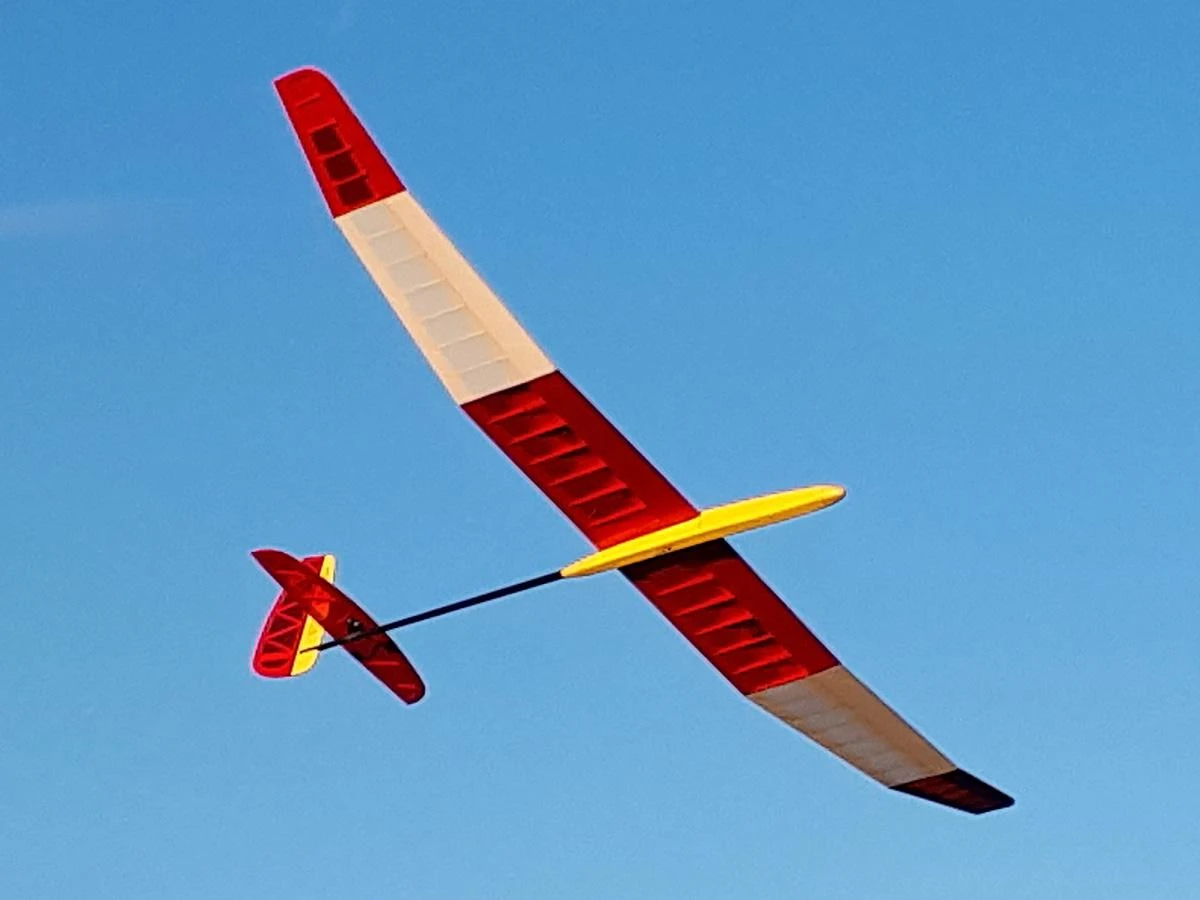

The X-Dream is a built-up laser cut balsa and ply kit designed for the new F3-RES high-start launched 2m Rudder-Elevator-Spoiler glider class popular in Germany and Austria.

The X-Dream is the very latest development of Alois Janowetz, the designer of the X-RES, Minores, Desire 2 – the top models of the 2018 and 2019 seasons in Austria and Germany. The new X-Dream is even lighter and performs even better.

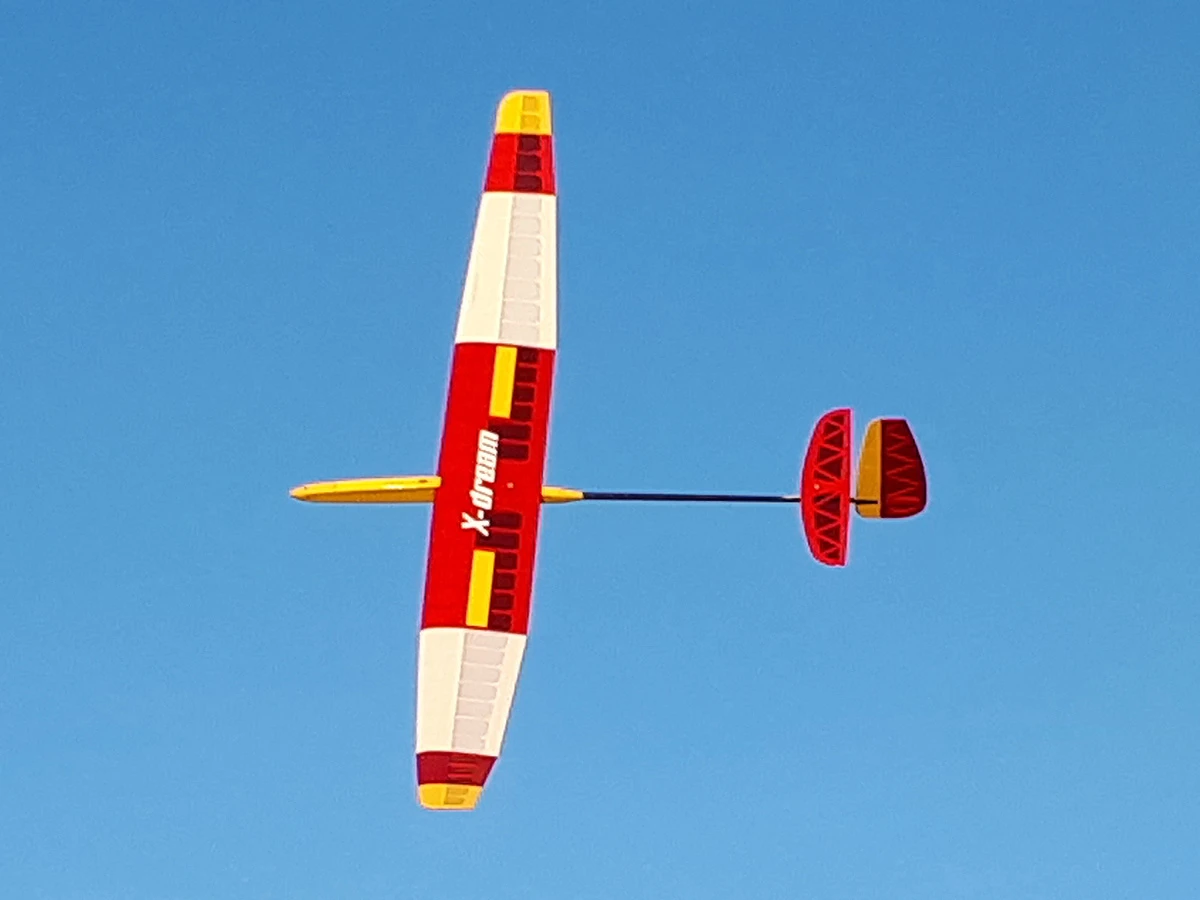

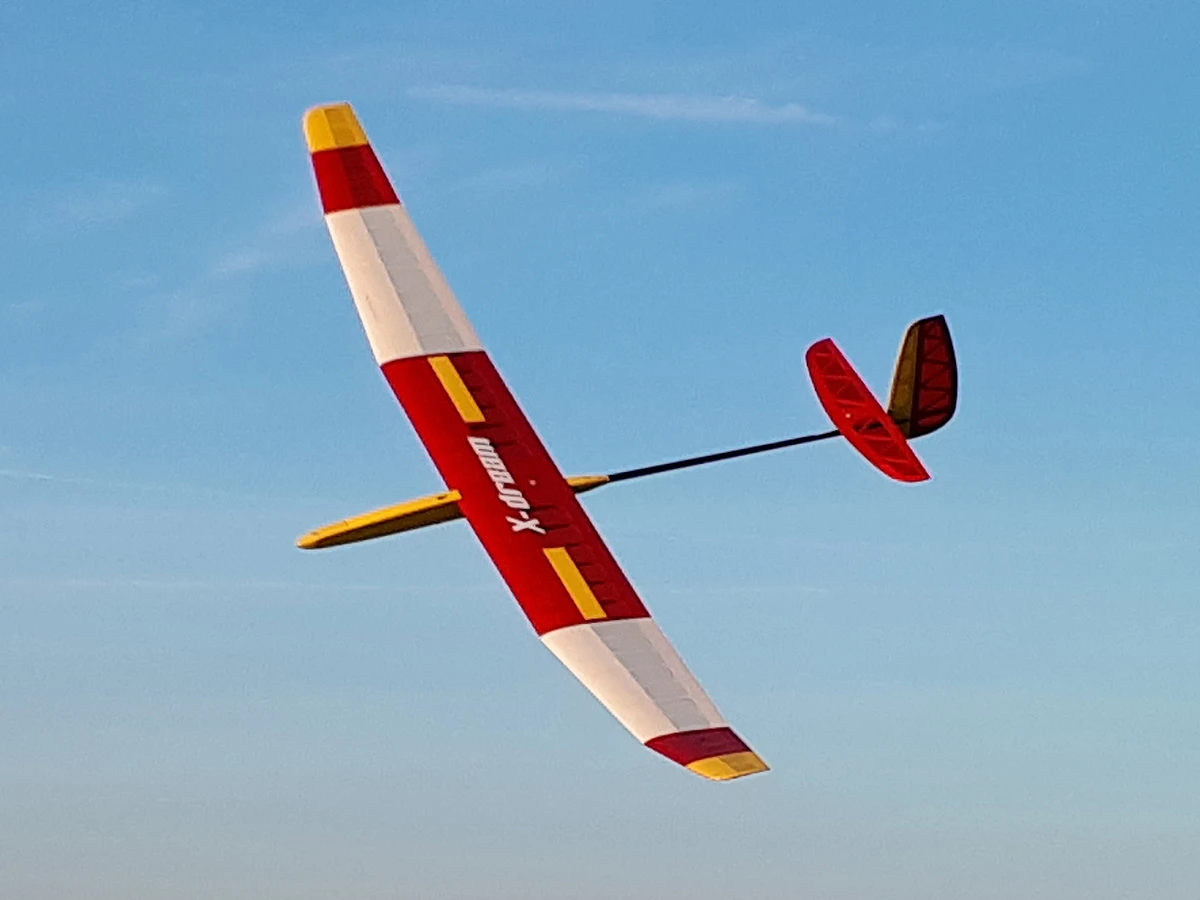

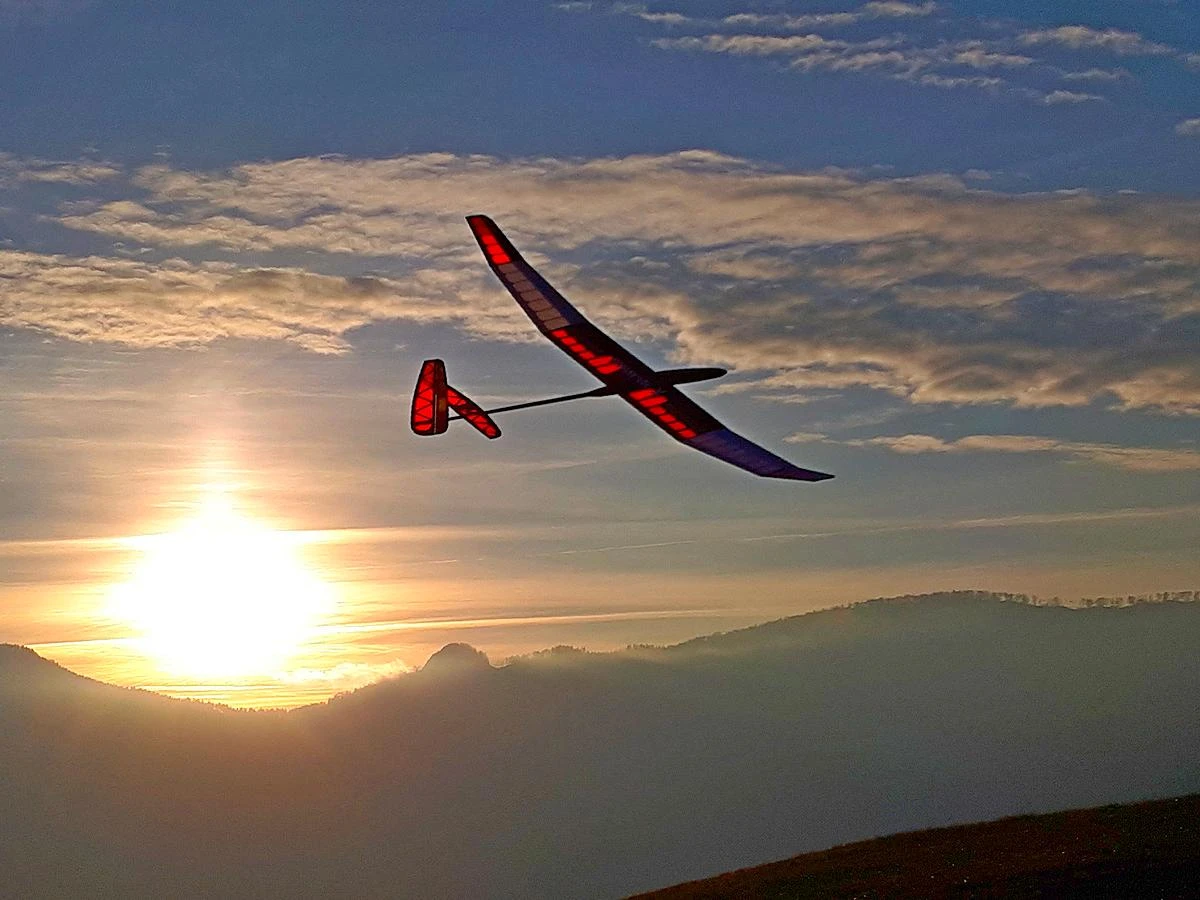

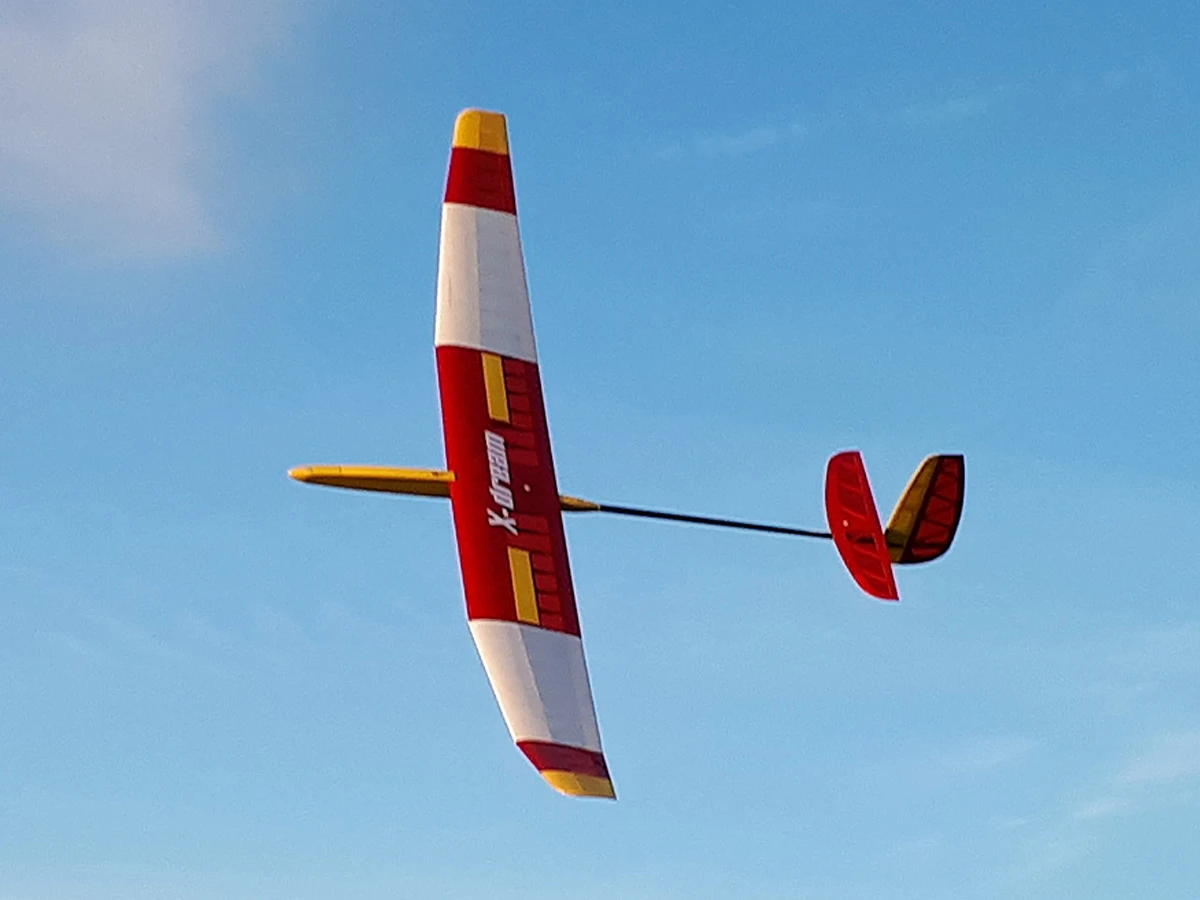

The X-Dream has well harmonised flight characteristics and amazing performance. Despite the compettion-optimised design the model is agile and extremely easy to fly. The simple yet strong design and the brilliant use of weight-optimized materials allows a flying weight as low as 380g and thus a wing loading of only 10.6 g/dm2 (3.5 oz/sq ft), resulting in very low sink rates.

The large 2-part spoilers allow almost vertical descents without an increase in speed. The wing separates into three panels and the tailplane is removable making the model very easy to transport.

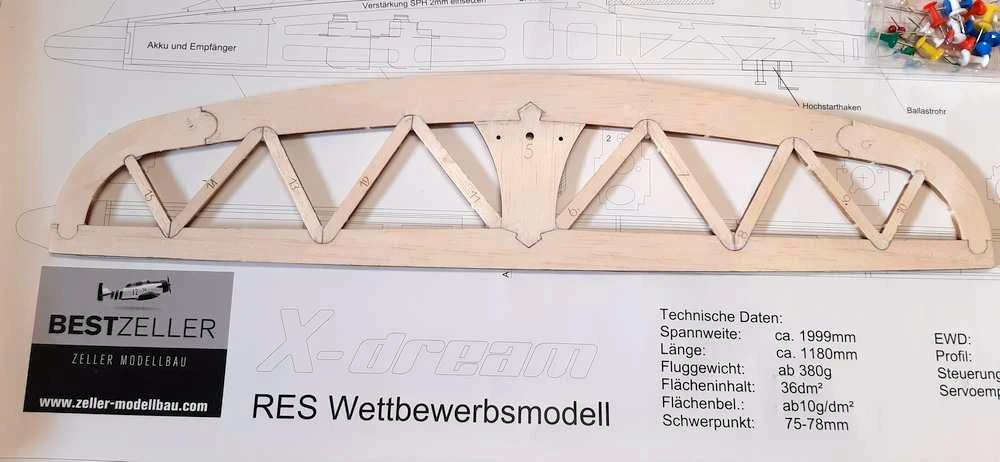

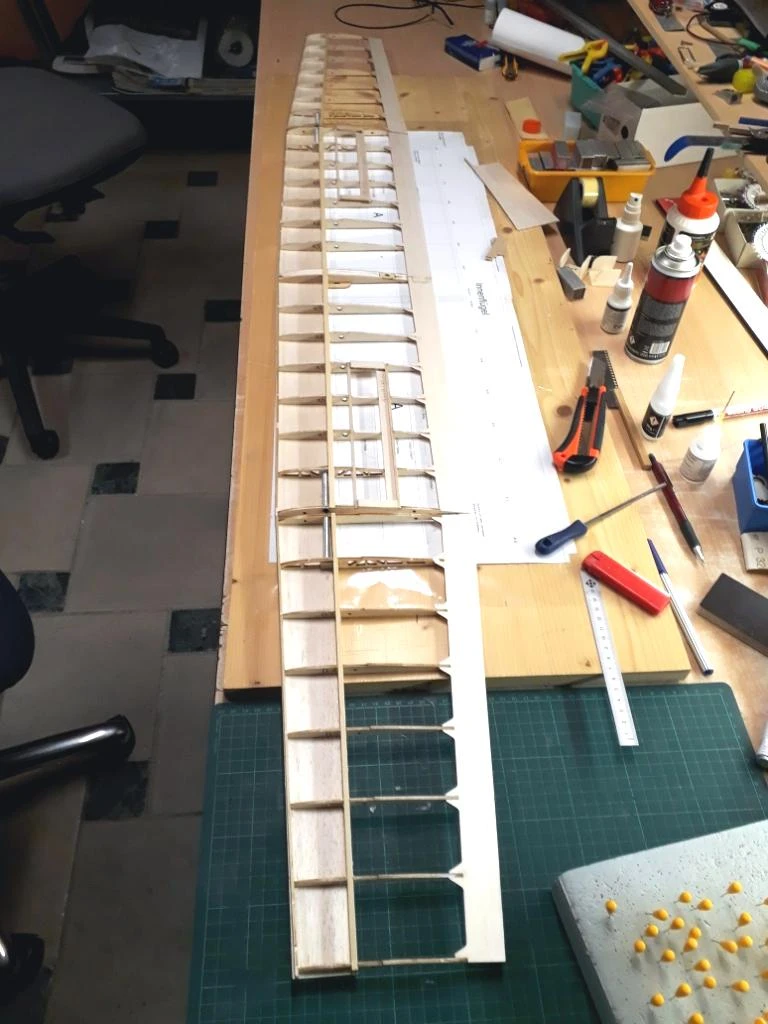

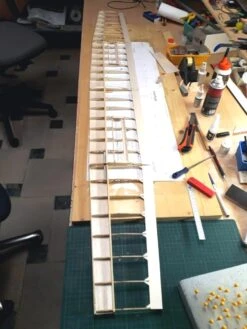

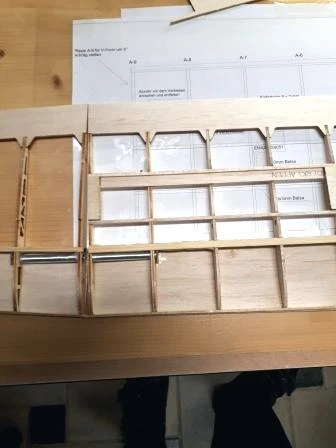

The laser cut kit has very simple and robust construction. Apart from the 6 mm carbon fibre wing joiners and the CF all moving tailplane mount the model is built from selected and optimized laser cut balsa and plywood. The model can be built very quickly using cyanoacrylate superglue, white glue or 5-minute epoxy. Oralight covering is recommended. An adjustable tow hook is standard and is included in the kit, as are the servo linkages. The kit includes a colour plan and comprehensive instructions, in German only. See the More detals heading below for links to the German manual and an English translation.

X-Dream Specifications
Wing span	2.0 m	79 in
Wing area	36.0 dm2	558 sq in
Length	118 cm	46.5 in
Flying weight from	380 g	13.4 oz
Wing loading	10.6 g/dm2	3.5 oz/sq ft
Aspect ratio	11.1
Wing airfoil	Modified AG
Dihedral (EDA)	12.0º
Centre of Gravity	75-78 mm from wing leading edge
Controls	Rudder, elevator, spoilers

X-Dream Typical Weights
Total structure	295.0 g	10.4 oz
Receiver	5.0 g	0.2 oz
Rudder servo	5.0 g	0.2 oz
Elevator servo	5.0 g	0.2 oz
Spoiler servos (2)	10.0 g	0.4 oz
Battery	55.0 g	1.9 oz
Noseweight	5.0 g	0.2 oz
Flying weight	380.0 g	13.4 oz

Recommended RC
Rudder & elevator servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, KST X06, KST X08
Spoiler servos (2)	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, KST X06, KST X08
Receiver	4-5 channel rx to match your transmitter
Battery	Dream-Flight 300 mAh 4.8V NiMH, HyperFlight 750 mAh 4.8V NiMH, Dream-Flight 750 mAh 4.8V NiMH, 4 cell Eneloop 500-800 mAh NiMH
