Sapphire Fuselage-suitable For 1.5m-3m Gliders & ESoarers

Pure or electric glider lightweight pod, as used in our Sapphire electric glider. Can be supplied with the nosecone intact or removed and a 32mm firewall fitted, for use with an inrunner or small outrunner electric motors.

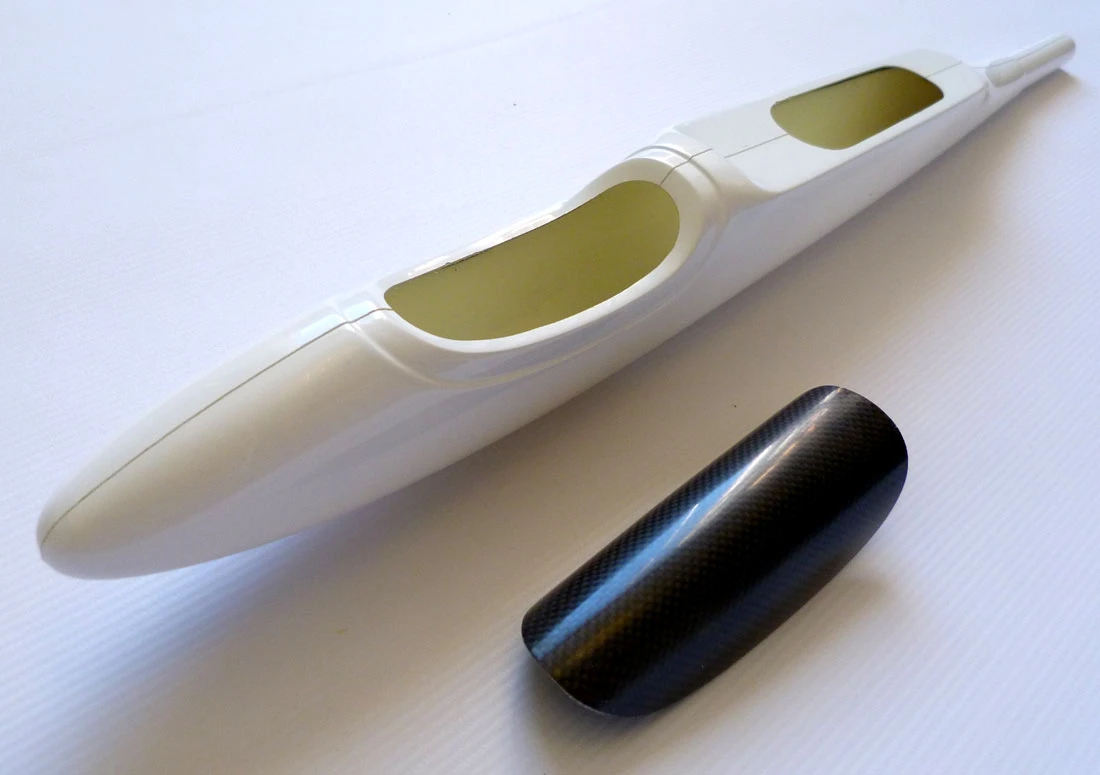

Supplied with a removable carbon canopy. The 18.5mm boom is not included in the base price and should be selected using the Tailboom option. The Blaster V mount fits this boom and can be purchased separately to make a complete Drela type pod-boom-tail mount fuselage.

Suitable for use on Allegro Lite and Bubble Dancer type models. For a 2m size model the boom can be cut down to about 60-70 cm. A 1m boom is the perfect length for a Bubble Dancer, making this a very nice option for that classic design.

Sapphire Pod Specification
Pod length ex spigot	41.7 cm	16.4 in
Pod length inc spigot	48.2 cm	19.0 in
Nose to wing LE	19.3 cm	7.6 in
Wing root chord	17.5 cm	6.9 in
Max wing chord	No limit
Weight	53 g	1.9 oz
Spinner diameter	32 mm
Boom spigot diameter	17.5 mm
Recommended boom wide end OD	18 mm
