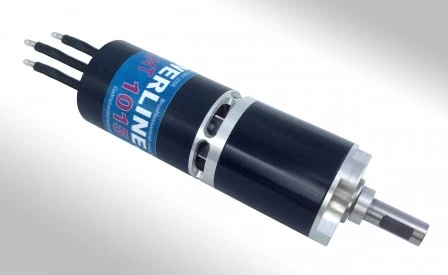

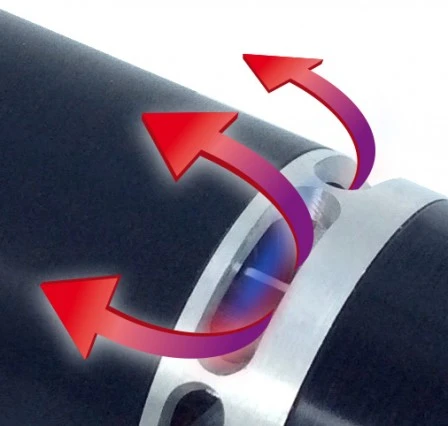

The new Powerline Micro 1015 Turbo is optimised for 3S LiPo power of F5J models weighing up to 1700g. Max current 34A on a 3S LiPo with a max capacity 1000 mAh. This new version has forced cooling allowing even higher power for a given weight of powertrain.
| Powerline Micro 1015 Turbo Weights | |
|---|---|
| Suitable for gliders weighing | 1300-1700 g max |
| Max power | 340W |
| Max current | 34A |
| Motor/gearbox weight | 79 g |
| Length | 64 mm |
| Diameter | 22 mm |
| Mounting pitch circle diameter | 17 mm |
| Shaft diameter | 5 mm |
| Gearbox ratio | 6.75:1 |
| Recommended ESC | YGE 35 LVT |
| Recommended propeller | GM 16×8, RF 16×8, RF 16×8.5 (approx 34A on 3S) |
| Recommended battery | 3s Lipo up to 1000 mAh |
| Powerline Micro 1015 Turbo Weights | |
|---|---|
| Powerline Micro 1015 Turbo | 79 g |
| Propeller RF 16×8.5 | 12 g |
| Spinner RF 30 mm | 13 g |
| Lipo 3s 850 40C | 80 g |
| ESC YGE 60 | 38 g |
| Plugs and screws | 4 g |
| Total weight | 226 g |
