PicaRES Evo V2 2m

The Picares Evo V2 has a good reputation in European F3-RES contests. The Picares is a beautiful 2 m all CNC cut balsa wood kit that builds fast and flies superbly. This new version is even lighter than previously, with an enlarged spoiler to ensure accurate landings.

The detailed full size plans include isometric drawings of some details and scale drawings of all the CNC balsa sheets, to make finding the parts easy. The plans include info on converting the model to electric power and on fitting a V tail rather than the Drela-inspired tail surfaces.

The model is well thought out with very nice detail design that does not add unneeded complexity. The parts are beautifully cut from well chosen balsa and ply, and fit together like a jigsaw.

The very complete accessories supplied include magnets, clevises, hinges, horns, and even a firewall for the optional electric conversion. The well illustrated manual is in German and can be understood with the help of Google Translate.

Picares Evo V2 Specifications
Wing span	2.0 m	78 in
Wing area	30.4 dm2	471 sq in
Length	127 cm	50.0 in
Flying weight from	445 g	15.7 oz
Wing loading	14.6 g/dm2	4.8 oz/sq ft
Aspect ratio	13.0
Wing airfoil	AG Thinned
Dihedral (EDA)	12.4º
Centre of Gravity	65 mm from wing leading edge
Controls	Rudder, elevator, spoiler

Picares Evo V2 Typical Weights

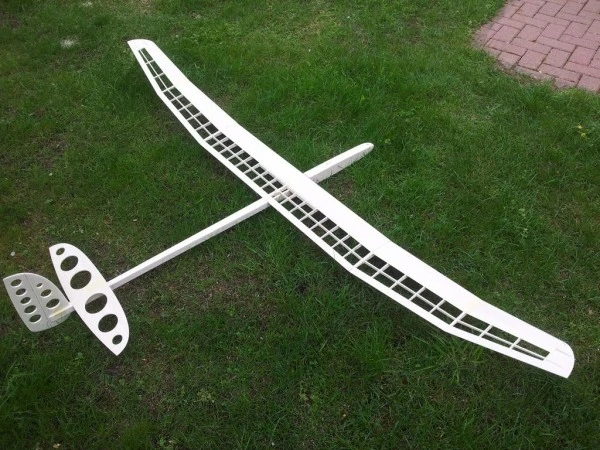

Bare structure	285 g	10.1 oz
Covering	50 g	1.8 oz
Total structure	335 g	11.8 oz
Wiring	10 g	0.4 oz
Receiver	6 g	0.2 oz
Rudder servo	5 g	0.2 oz
Elevator servo	5 g	0.2 oz
Spoiler servo	9 g	0.3 oz
Battery	60 g	2.1 oz
Noseweight	15 g	0.5 oz
Flying weight	445 g	15.7 oz

Recommended RC
Rudder & elevator servos	Ripmax SD100, Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, Blue Bird BMS-101HV, KST X08, Ripmax SD150, Corona DS843MG, Graupner DES 261
Spoiler servo	Blue Bird BMS-101AMG, Blue Bird BMS-101DMG, KST X08, Ripmax SD150, Corona DS843MG
Receiver	4 or 5 channel receiver to match your transmitter

Optional Electric Powertrain Recommendations
Hacker A10-7L geared 4.4:1	3S 450mAh LiPo, 13×8 folding prop
ADH300L Front Mount	3S 450mAh LiPo, 9×5 folding prop
ADH300L Front Mount	2S 450mAh LiPo, 11×6 folding prop
