MKS HV75K-R Wing Servo – 3.3Kg.cm 0.09s 7.8g 9mm

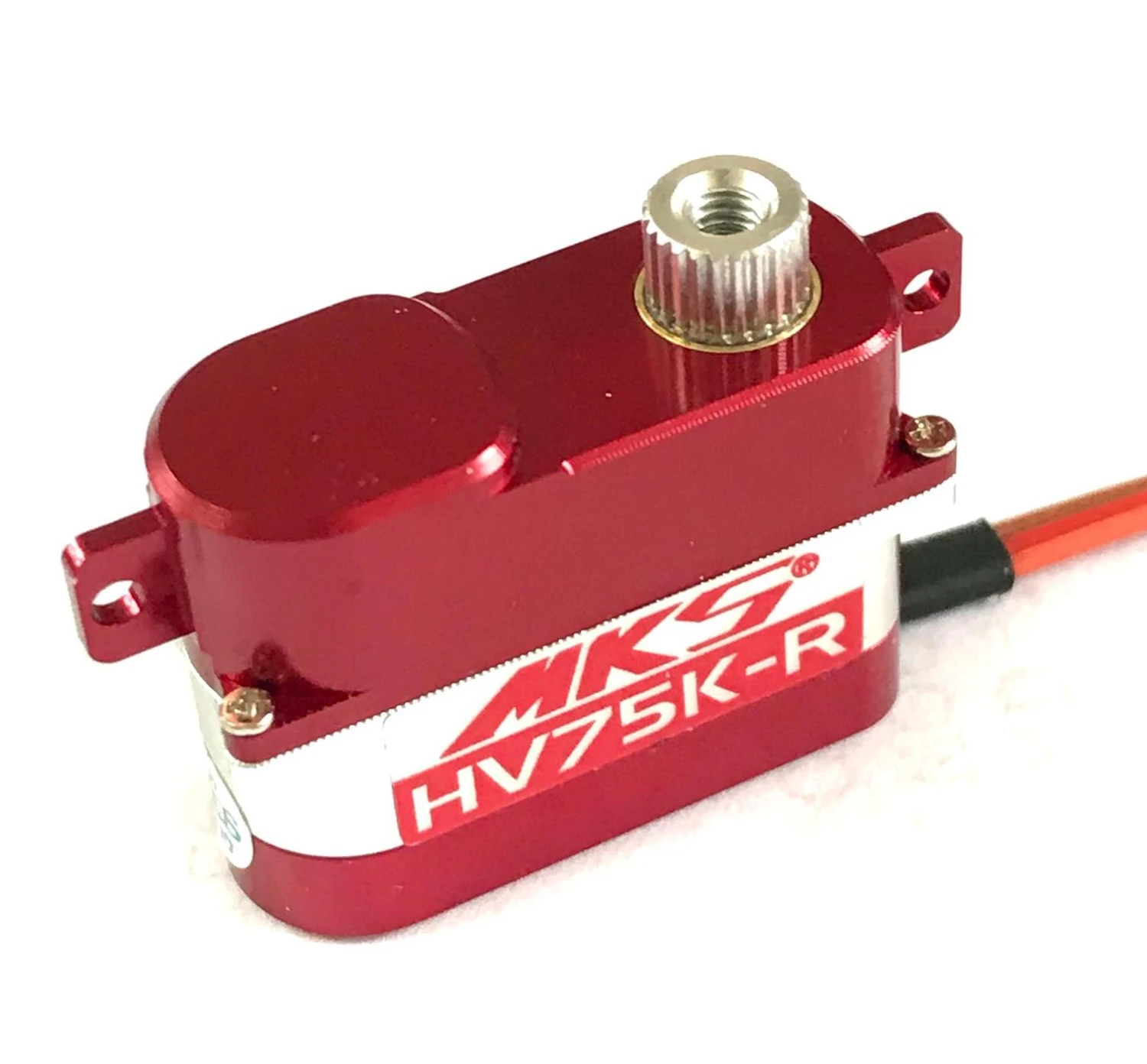

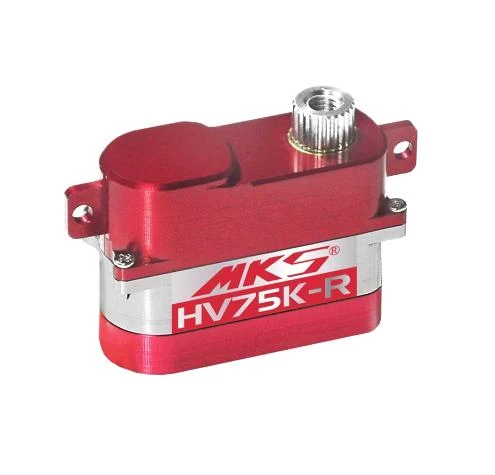

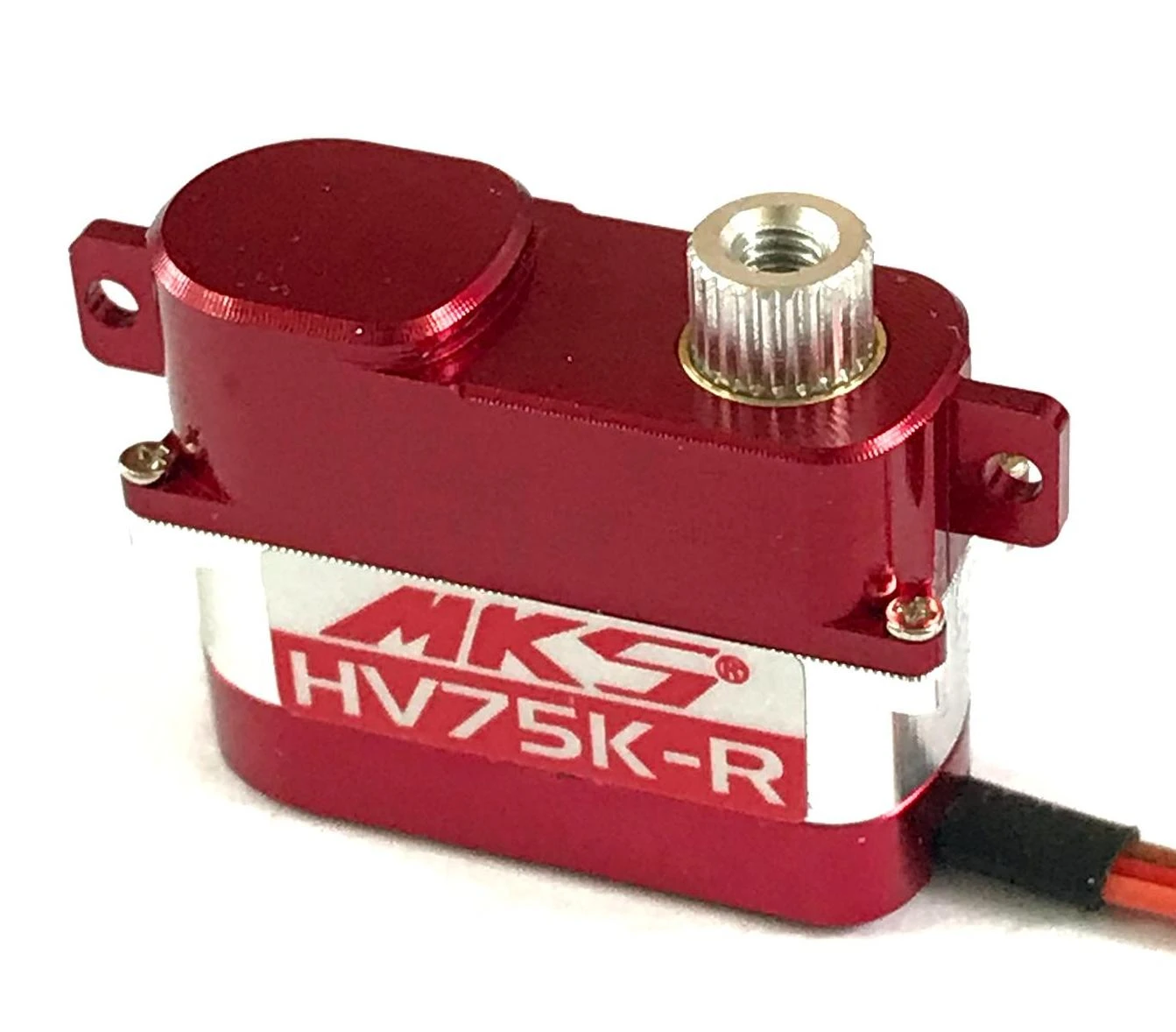

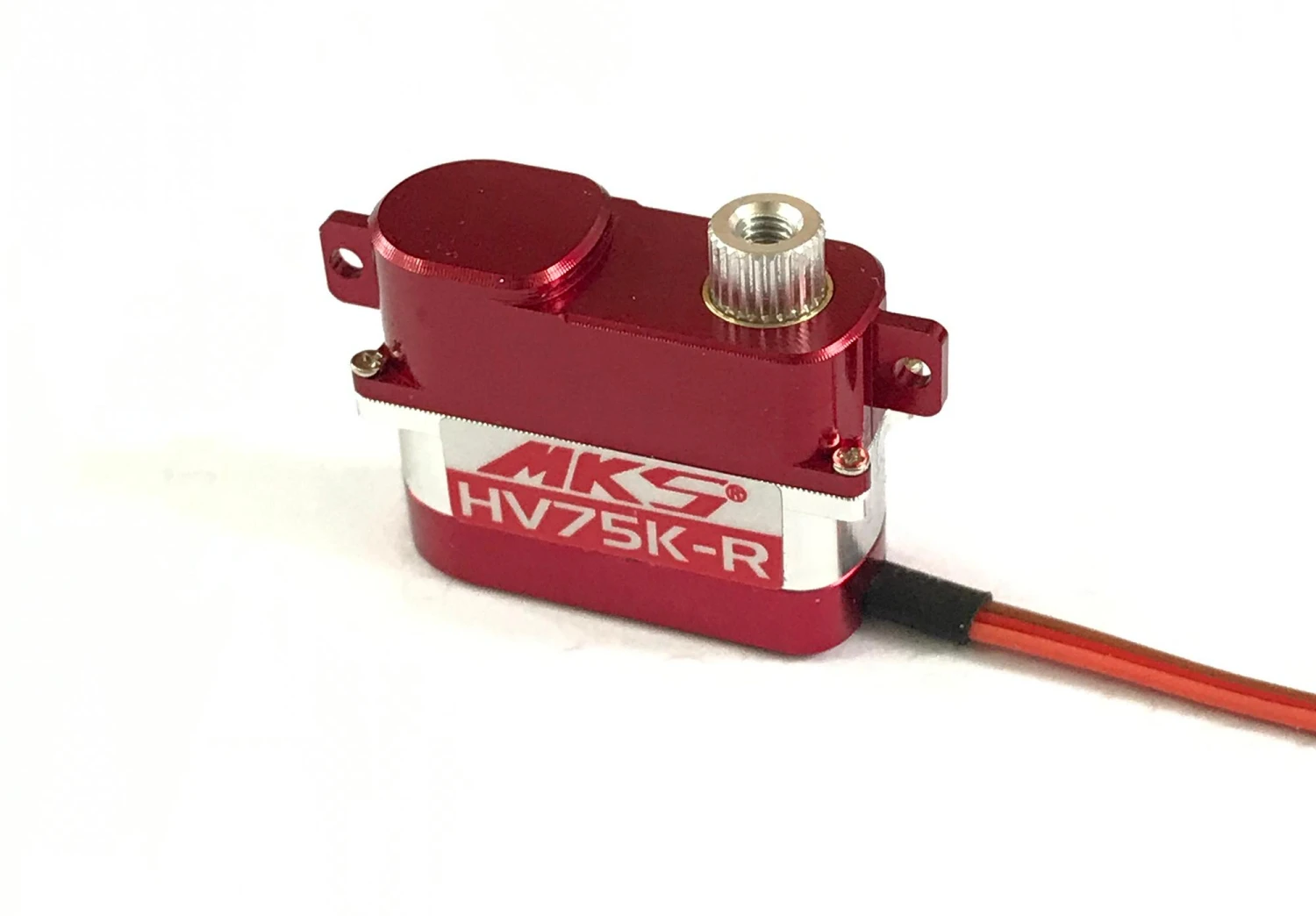

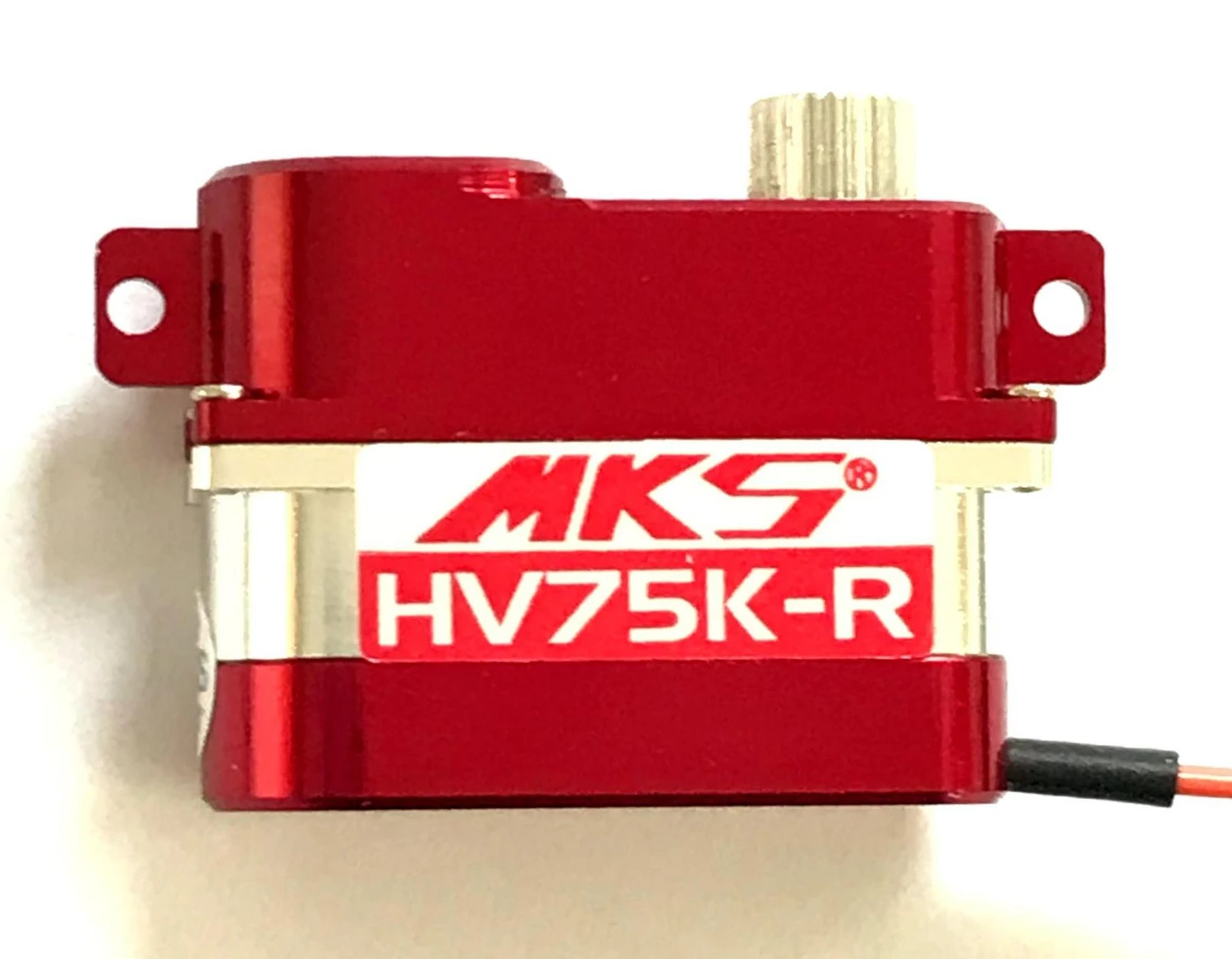

The MKS HV75K-R servo is the high voltage wing mount version of the MKS HV75K. The case has horizonal mounting tabs making it suitable for fitting in a wing (or tail surface). This version is a little heavier than the lugless HV75K-N. The MKS HV75K-R is actually a low-medium-high voltage servo as it works on 1S and 2S LiPo as and well as 4.8V – 6V NiMH batteries.

The MKS HV75K-R is more powerful, faster, and considerably more robust than the DS65K. Its clever inverted motor design makes it very compact, in fact it is nearly as small as the SD100 or D47 in the vertical and horizontal directions.

The MKS HV75K-R is ideal for F3K, F5D, and all small models that require excellent precision, massive torque, and good speed.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.

High voltage versions of the HV75K are available with standard mounting lugs (the HV75K), wing mounting lugs (the HV75K-R), and no mounting lugs (the HV75K-N). Low/standard voltage versions of the servo are available with standard mounting lugs (the DS75K), wing mounting lugs (the DS75K-R), and no mounting lugs (the DS75K-N).

MKS HV75K-R Wing Servo Specifications
Body dimensions	23.0 mm wide x 9.0 mm thick x 16.7 mm high	0.91″ wide x 0.35″ thick x 0.66″ high
Max dimensions	29.0 mm wide x 9.0 mm thick x 21.0 mm high	1.14″ wide x 0.35″ thick x 0.83″ high
Stall torque (3.7V)	1.4 Kg.cm	19 oz.in
Stall torque (6V)	2.3 Kg.cm	32 oz.in
Stall torque (8.2V)	3.3 Kg.cm	46 oz.in
Weight	7.8 g	0.28 oz
Lead length	7 cm	2.8 in
Operating speed (3.7V)	0.21 sec/60°
Operating speed (6V)	0.13 sec/60°
Operating speed (8.2V)	0.09 sec/60°
Operating voltage	3.5V to 8.4V
Operating temperature	0 to 50 °C
Bearings	1 ballrace+1 oil-retaining bearing+2 jewel bearing
Gear material	7075 Chrome-Titanium alloy
Case material	6061 Aluminum alloy
Motor type	Coreless DC motor
Working frequency	333 Hz
Dead band/resolution	1 µs
Pulse width for ± 60º	(L) 920 µs – (0°) 1520 µs- (R) 2120 µs µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer
Supplied accessories	2 plastic output arms, 2 arm retaining screws, 4 mounting screws
Optional accessories	MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms
