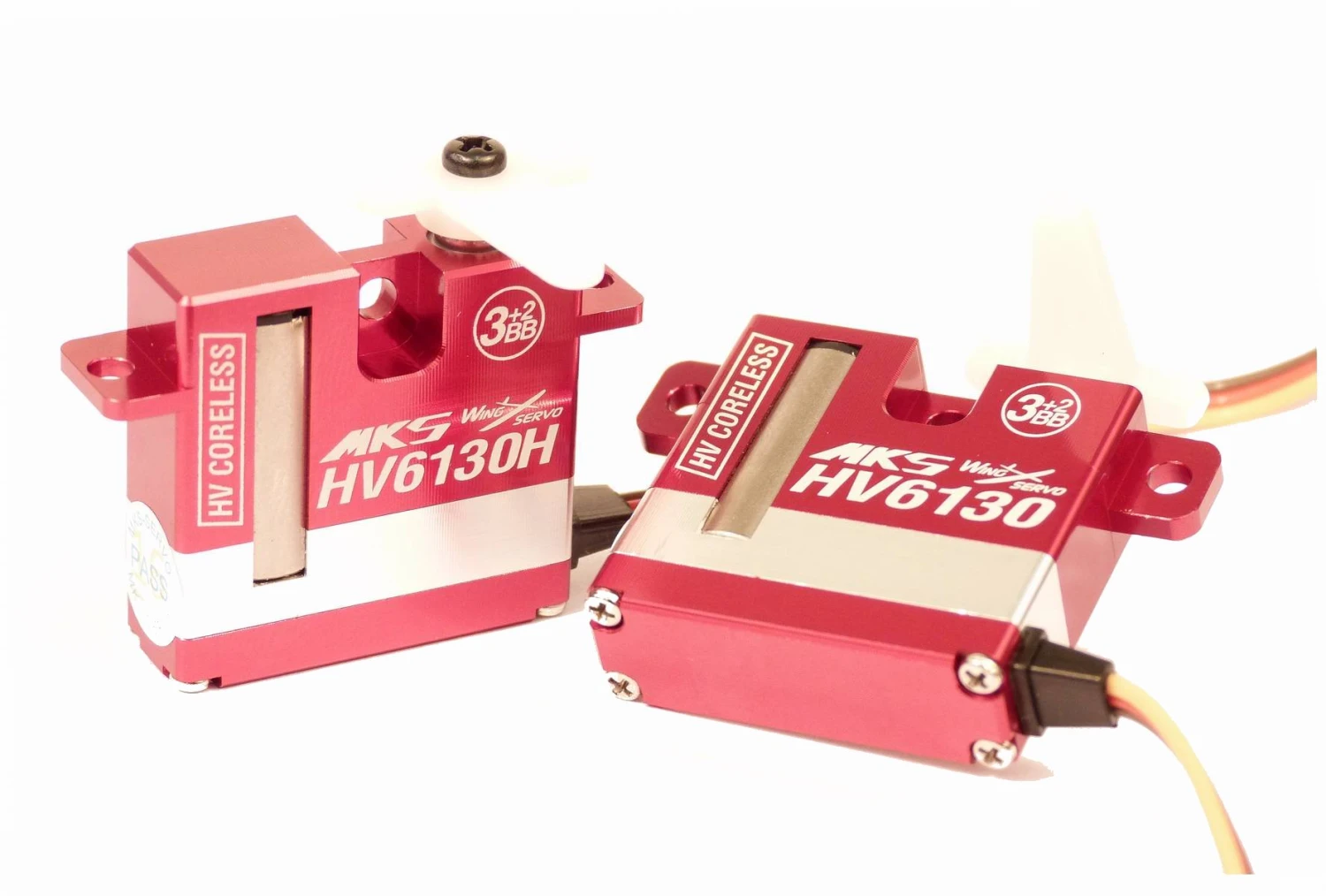

The MKS HV6130H is a low-medium-high voltage servo to replace the acclaimed MSK DS6125H, MKS DS6125 Glider and MKS DS6125 Mini servos. It is specially optimised for glider fliers, with outstanding torque, precision and a very low dead band. On a 2S LiPo battery it has higher torque and speed than the DS6125 Mini, DS6125 Glider and even the HBL6625 Mini servo. At 23 g it is also lighter than all these servos. This very high torque 10 mm thin servo is suitable for many glider, jet, heli and other applications. It has more torque and a better geartrain than all other high voltage servos of this size and price range.
At only 10 mm thick the MKS HV6130-H can easily fit in constrained places, and with an excellent 8.1 kg.cm torque and a blistering 0.10s/60° speed it is excellent for all high performance F3B, F3F, F3J, DS gliders, and F5J electric gliders, helis, jets, ducted fans and fast sport slopers.
The extreme reliability and performance of these servos also makes them very suitable for use in film and motion picture industry special effect departments. They are also used in robotic, drone, UAV, UAS, academic research, military, and other highly demanding applications.
(C) 2016 Neil Stainton.
| MKS HV6130H Servo Specifications | ||
|---|---|---|

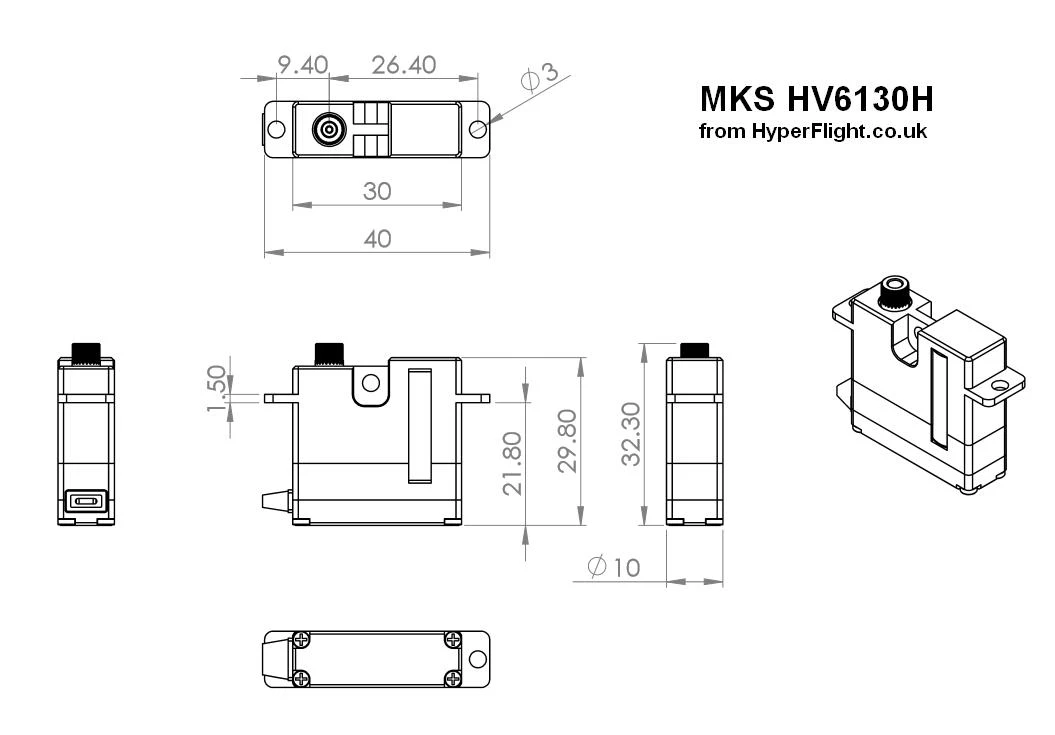

| Body dimensions | 30.0 mm wide x 10.0 mm thick x 29.8 mm high | 1.18″ wide x 0.39″ thick x 1.17″ high |
| Max dimensions | 40.0 mm wide x 10.0 mm thick x 32.3 mm high | 1.57″ wide x 0.39″ thick x 1.27″ high |
| Stall torque (6V) | 6 Kg.cm | 83 oz.in |
| Stall torque (7.4V) | 7.6 Kg.cm | 106 oz.in |
| Stall torque (8.2V) | 8.1 Kg.cm | 112 oz.in |
| Weight | 23 g | 0.81 oz |
| Lead length | 18 cm | 7.1 in |
| Operating speed (6V) | 0.14 sec/60° | |
| Operating speed (7.4V) | 0.11 sec/60° | |
| Operating speed (8.2V) | 0.1 sec/60° | |
| Operating voltage | 6V to 8.2V | |
| Operating temperature | -10 to 50 °C | |
| Bearings | 3 ball bearings + 3 jewel bearings | |
| Gear material | Chrome-titanium alloy | |
| Case material | All Aluminium Alloy CNC Case | |
| Motor type | Coreless DC motor | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 0.001 µs | |
| Pulse width for ± 60º | µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Direct drive potentiometer | |

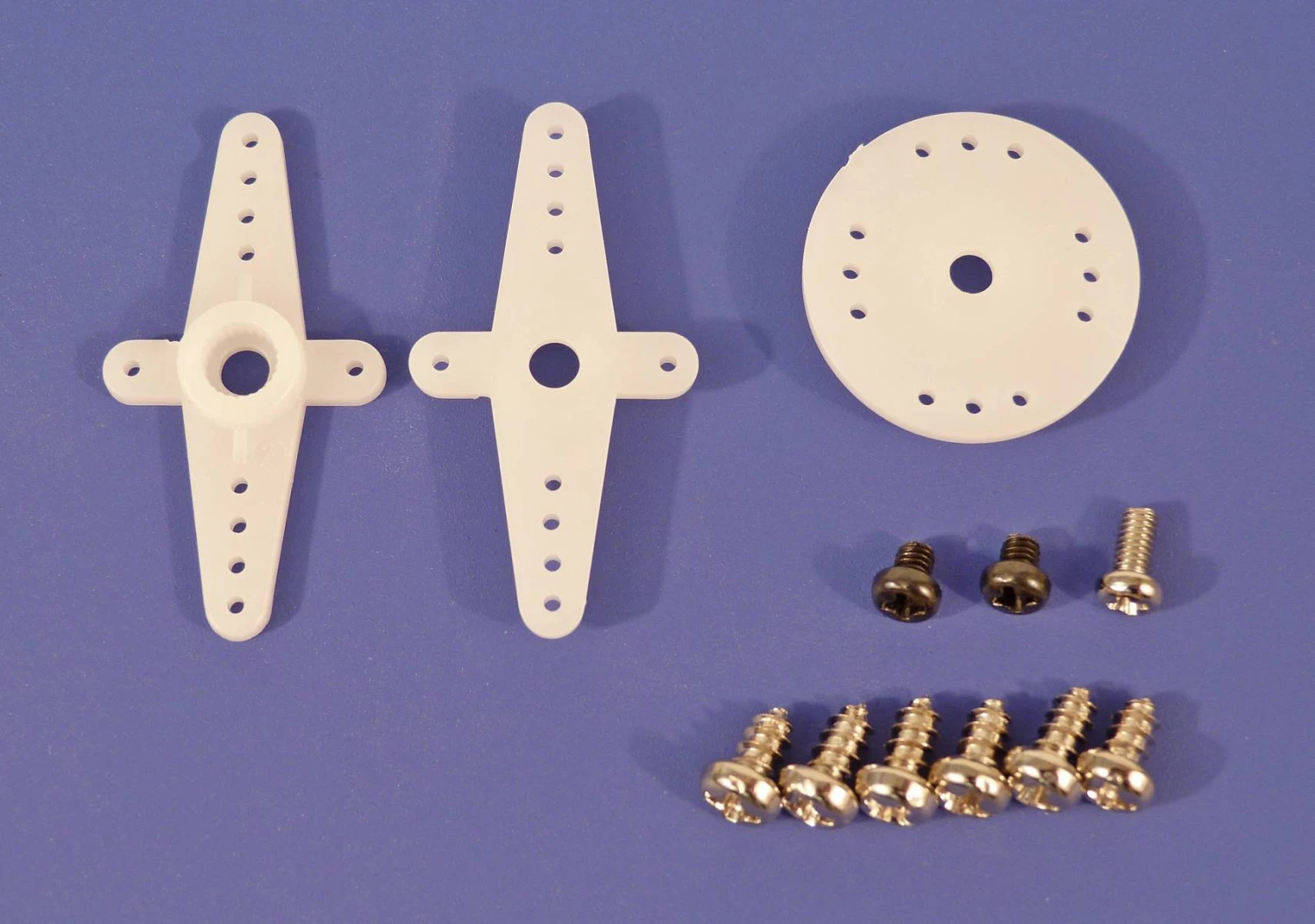

| Supplied accessories | 3 plastic output arms, 2 arm retaining screws, 6 mounting screws | |
| Optional accessories | MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms, Replacement Gear Set for MKS HV6130 | |
