MKS DS6125E Servo – 3.3Kg.cm 0.05s 21.0g 12mm

The MKS DS6125E servo is a high speed, high precision servo especially optimsed for glider V tails, normal tail surfaces, and 3D helicopters. Its robust geartrain, strong alloy case and excellent feedback system, interfaced to brilliant firmware driving the FET output staged amplifier combine to make this the tail servo of choice. Idea for competition modellers, ensuring the very best elevator control enabling very accurate high speed flight.

At 12mm thick this superb servo can easily fit in its intended models, and with its incredible 0.053 second speed and useful 3.3kg.cm torque the DS6125e is appropriate for F3F, F3B, F3J, F5J and other high speed gliders.

The MKS hallmark CNC aluminium alloy case adds rigidity and crash resistance to the servo. The gears are pre-loaded to remove all slop or backlash from the geartrain, allowing a level of precision unequalled by other manufacturers.

MKS DS6125E Servo Specifications

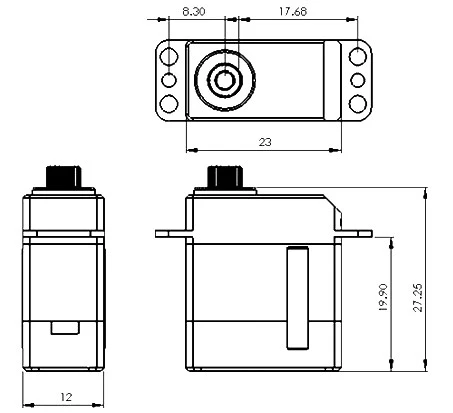

Body dimensions	23.0 mm wide x 12.0 mm thick x 27.3 mm high	0.91″ wide x 0.47″ thick x 1.07″ high
Max dimensions	32.0 mm wide x 12.0 mm thick x 32.5 mm high	1.26″ wide x 0.47″ thick x 1.28″ high
Stall torque (4.8V)	2.58 Kg.cm	36 oz.in
Stall torque (5V)	2.7 Kg.cm	37 oz.in
Stall torque (6V)	3.25 Kg.cm	45 oz.in
Weight	21 g	0.74 oz
Lead length	15 cm	5.9 in
Operating speed (4.8V)	0.066 sec/60°
Operating speed (5V)	0.063 sec/60°
Operating speed (6V)	0.053 sec/60°
Operating voltage	4.8V to 6V
Operating temperature	-10 to 50 °C
Bearings	2 Ball bearings
Gear material	Metal Alloy Gear
Case material	CNC machined 6061 aluminium
Motor type	High-end Japanese coreless Motor
Working frequency	333 Hz
Dead band/resolution	0.8 µs
Pulse width for ± 60º	µs
Digital	Yes
Programmable	No
Position feedback	Direct drive potentiometer
Supplied accessories	2 substantial plastic output arms, 1 output disc, 2 output arm retaining screws, 6 mounting screws
Optional accessories	MKS Short Metal Servo Output Arms, MKS Long Metal Servo Output Arms
