Mega 16/25/2 2600 RPM/V 110g Inrunner
Original price was: $102.14.$71.50Current price is: $71.50.
- Shop with Confidence, Pay Safely
- Fast, friendly, always here to help.
- Free Shipping over $25
- Multiple payment options for secure shopping with SSL

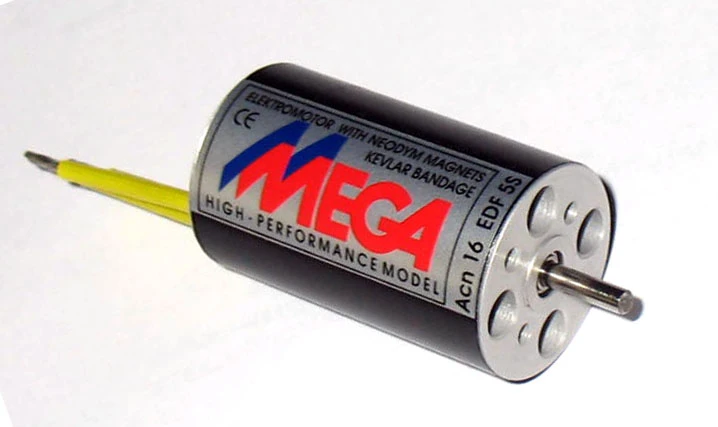

The Mega 16/25/2 Brushless Motor is a longer Speed 400 sized brushless motor that is powerful, efficient and reliable. Highly recommended for pylon racers.
- Hardened steel shaft, diameter 3.2 mm.
- Two precise ball bearings
- Dynamically balanced
- Neodymium magnet rotor
- Handmade stator, lightweight rotor allows high revolution.
- Kevlar bandage rotor
- Motor mount has 2 holes on a 16mm diameter and 2 on a 19mm diameter, all M3 threaded
- Efficiency up to 86%
| Mega 16/25/2 Specifications | ||
|---|---|---|
| Motor name | Mega 16/25/2 | inrunner |
| Motor weight | 110.0 g | 3.88 oz |
| Motor diameter | 28.0 mm | 1.10 in |
| Motor length | 46.0 mm | 1.81 in |
| Lead length | 0.0 cm | 0.00 in |
| Shaft diameter | 3.2 mm | 0.12 in |
| Mounting info | 2 M3 holes on 16mm & 2 on 19mm diameter | |
| Estimated Rm | 16 mR | |
| Estimated Kv | 2600 RPM/V | |
| Estimated Geared Kv | 2600 RPM/V | |
| Estimated Io | 3.40 A @ 10 V | |
| Max efficiency (10 V) | 86 % @ 46.1 A | |
| Operating effic’y (10 V) | 85 % @ 60.0 A | |
| Motor Km | 29.0 Nm/W^.5 X1000 | |
| Motor Km/Kg | 264 Nm/(W^.5 Kg) | |
| Recommended battery | 3S LiPo | |
| Rec max LiPo capacity | 2 Ah | |
| Supplied accessories | None | |
| 3S LiPo Performance | ||
| Recommended prop | 6×7 | |
| Input power | 600 W on 6×7 prop | |
| Current | 60.0 A on 6×7 prop | |
| 4S LiPo Performance | ||
| Recommended prop | 5.5×5.5 | |
| Input power | 800 W on 5.5×5.5 prop | |
| Current | 64.0 A on 5.5×5.5 prop | |
