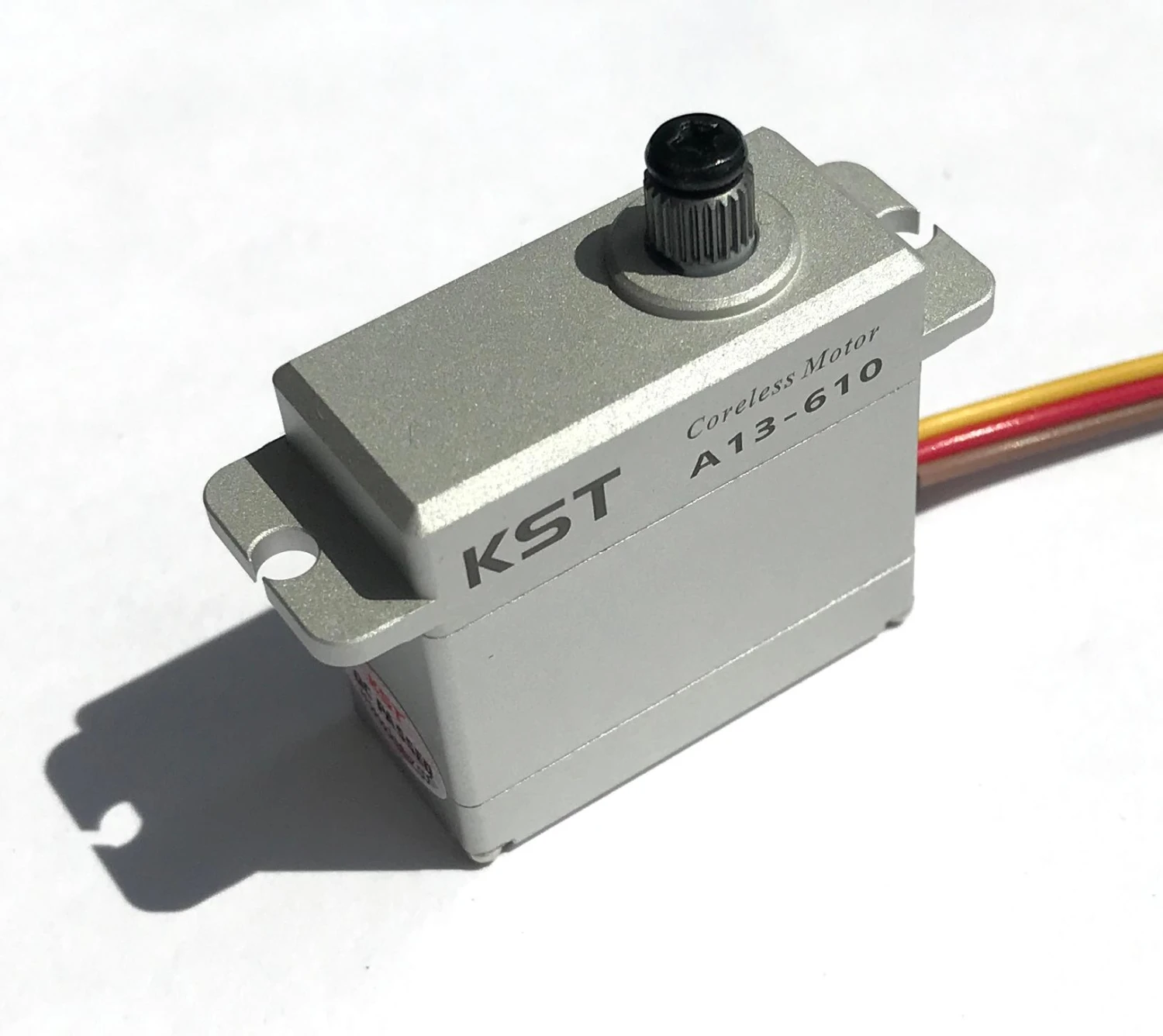

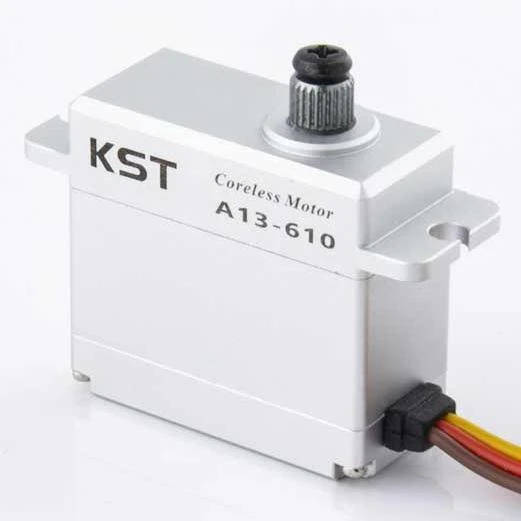

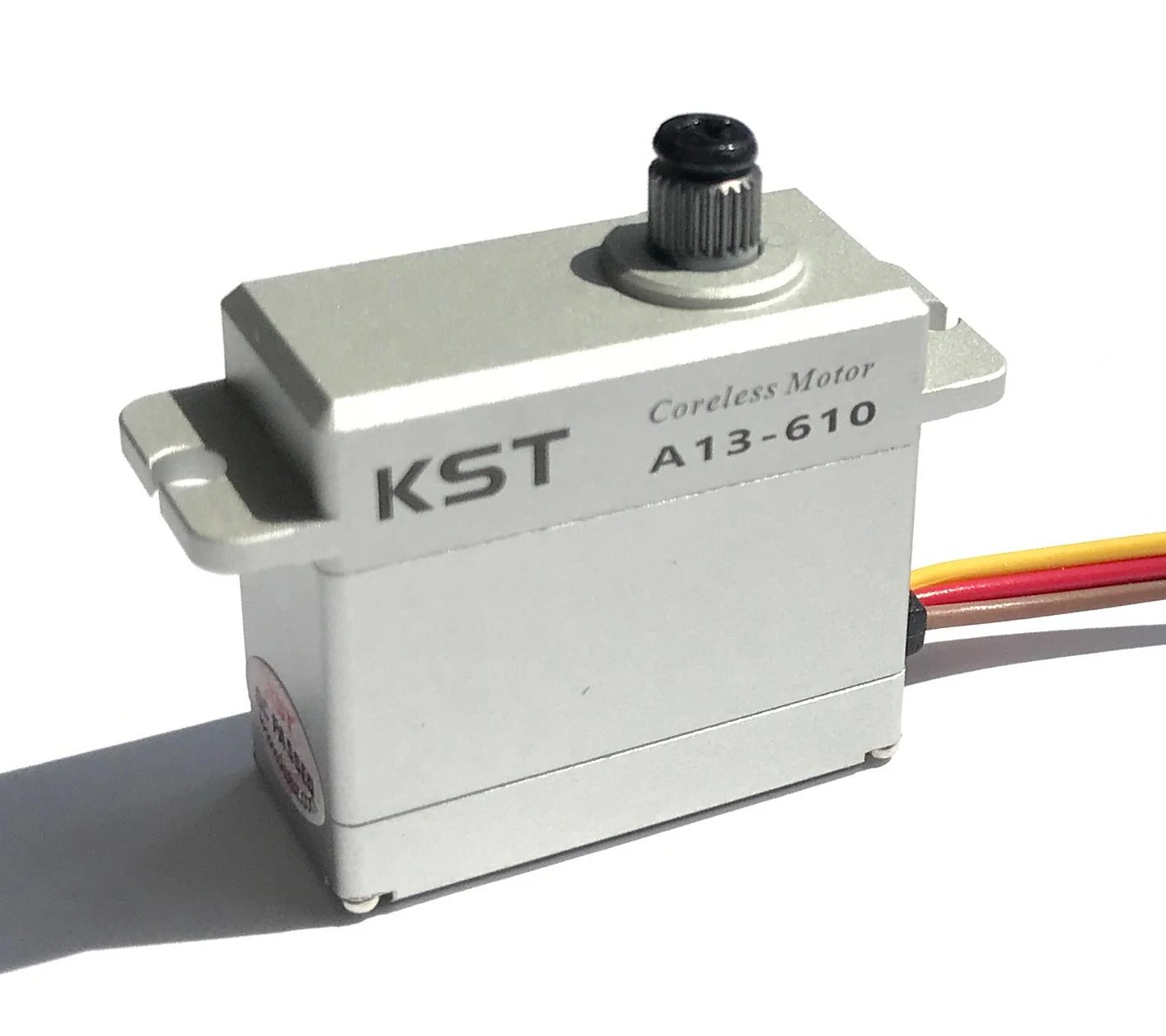

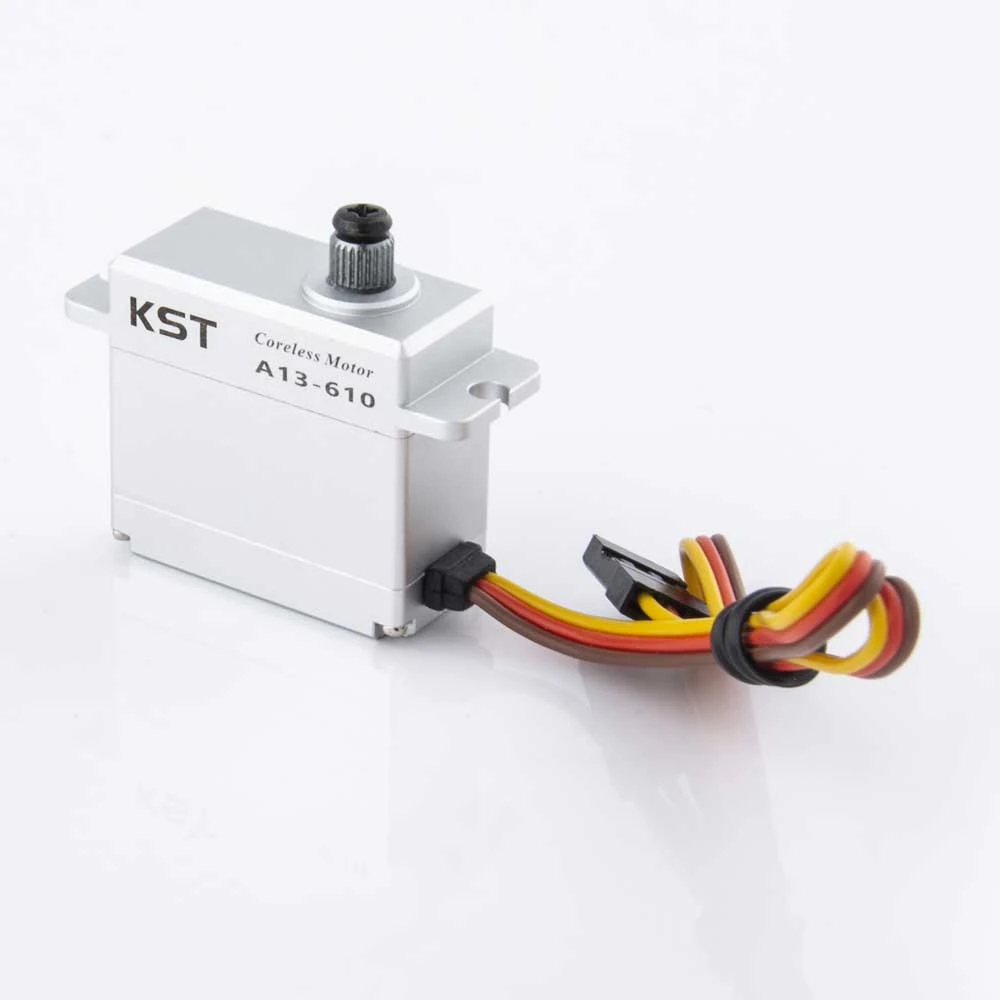

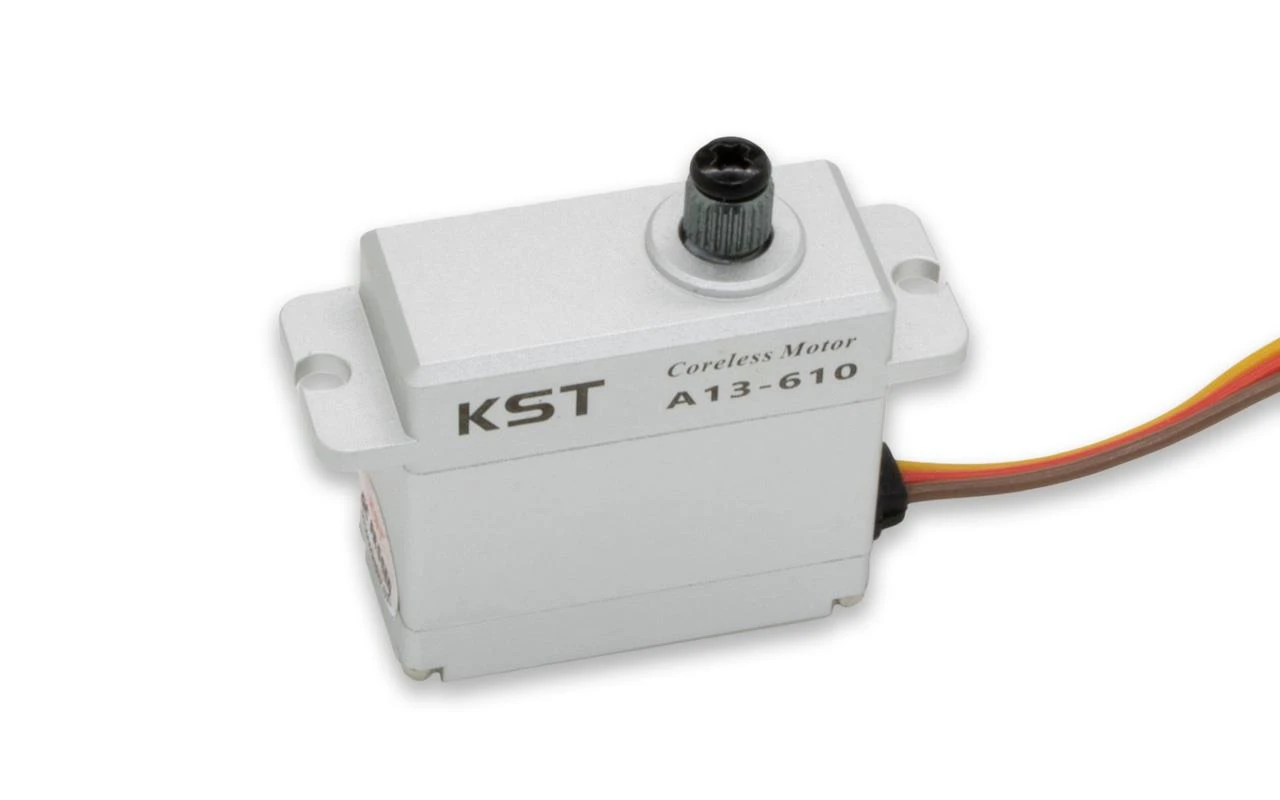

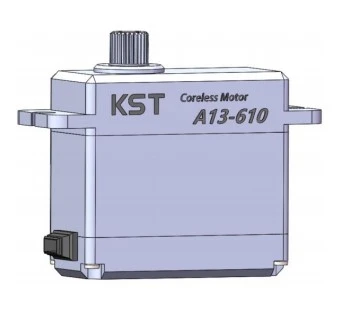

New KST A13-610 is a medium to high voltage range metal cased servo with excellent speed and torque specifications. The KST A13-610 has a hardened steel drive train and a coreless motor capable of running all the way from 4.8V to 8.4V (4S NiMH to 2S LiPo) making these servos ideal for electric powered models (most ESCs output 5.5V) as well as most gliders.

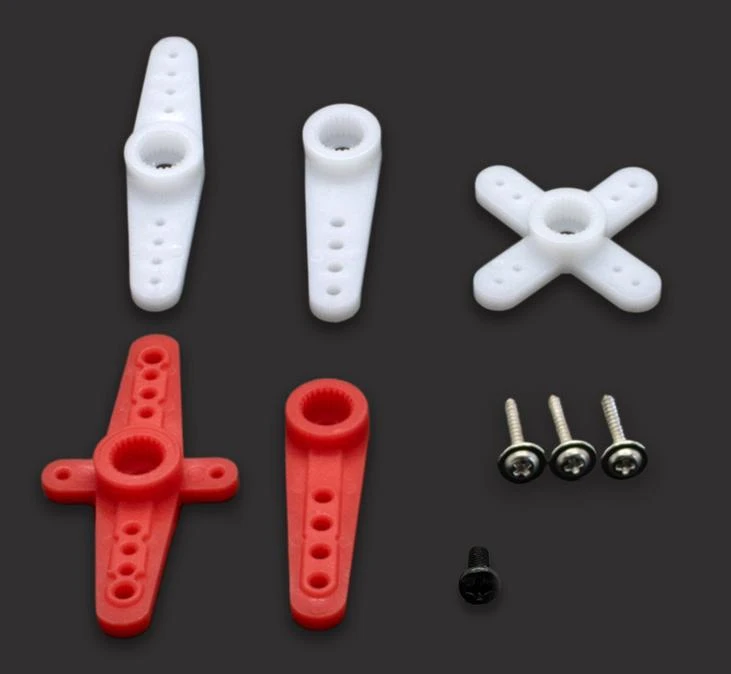

Supplied accessories include two strong red nylon output arms, and three normal strength white nylon output arms.
KST A13-610 Features
- 13 mm body for stronger gears and improved toughness
- Excellent 9.0 Kg.cm torque
- Compact and light weight design
- Excellent torque and speed
- Wide 4S NiMH to 2S LiPo voltage range
- Excellent heat dissipation
- 7075 Alloy casing
- Hardened Steel gears
- Designed for lightweight high performance RC Gliders and Helis
| KST A13-610 Servo Specifications | ||
|---|---|---|

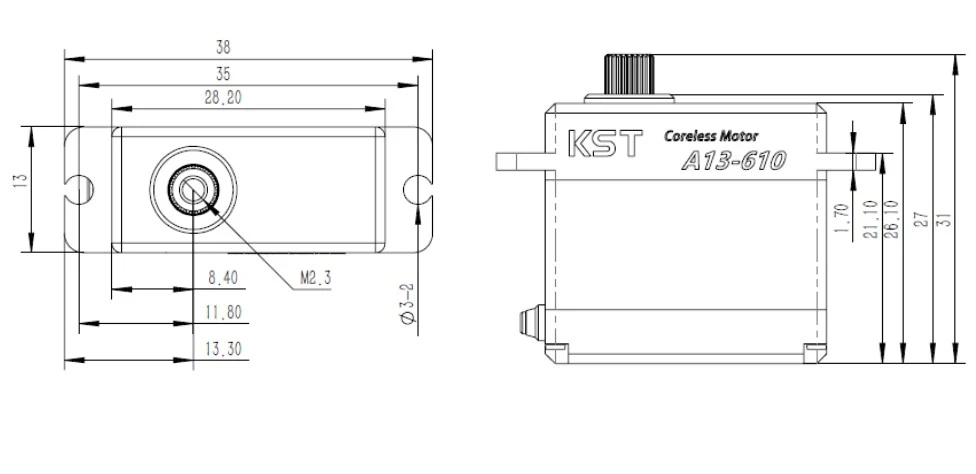

| Body dimensions | 28.2 mm wide x 13.0 mm thick x 26.1 mm high | 1.11″ wide x 0.51″ thick x 1.03″ high |
| Max dimensions | 38.0 mm wide x 13.0 mm thick x 31.0 mm high | 1.50″ wide x 0.51″ thick x 1.22″ high |
| Stall torque (4.8V) | 5.5 Kg.cm | 76 oz.in |
| Stall torque (6V) | 6.5 Kg.cm | 90 oz.in |
| Stall torque (8.4V) | 9 Kg.cm | 125 oz.in |
| Weight | 24 g | 0.85 oz |
| Lead length | 21 cm | 8.3 in |
| Operating speed (4.8V) | 0.13 sec/60° | |
| Operating speed (6V) | 0.12 sec/60° | |
| Operating speed (8.4V) | 0.1 sec/60° | |
| Operating voltage | 4.8V to 8.4V | |
| Operating temperature | -10 – +55 °C | |
| Bearings | 2 ball races | |
| Gear material | Hardened steel | |
| Case material | 7075 aluminium | |
| Motor type | Coreless DC | |
| Working frequency | 333 Hz | |
| Dead band/resolution | 2 µs | |
| Pulse width for ± 60º | ±50°when 1000-2000us µs | |
| Digital | Yes | |
| Programmable | No | |
| Position feedback | Potentiometer | |
| Supplied accessories | 2 strong red plastic output arms, 3 normal strength white plastic output arms, 2 arm retaining screws, 3 mounting screws | |
| Optional accessories | Integrated Drive System/Mono for the KST A13, Frame with bearing for the KST A13 | |
