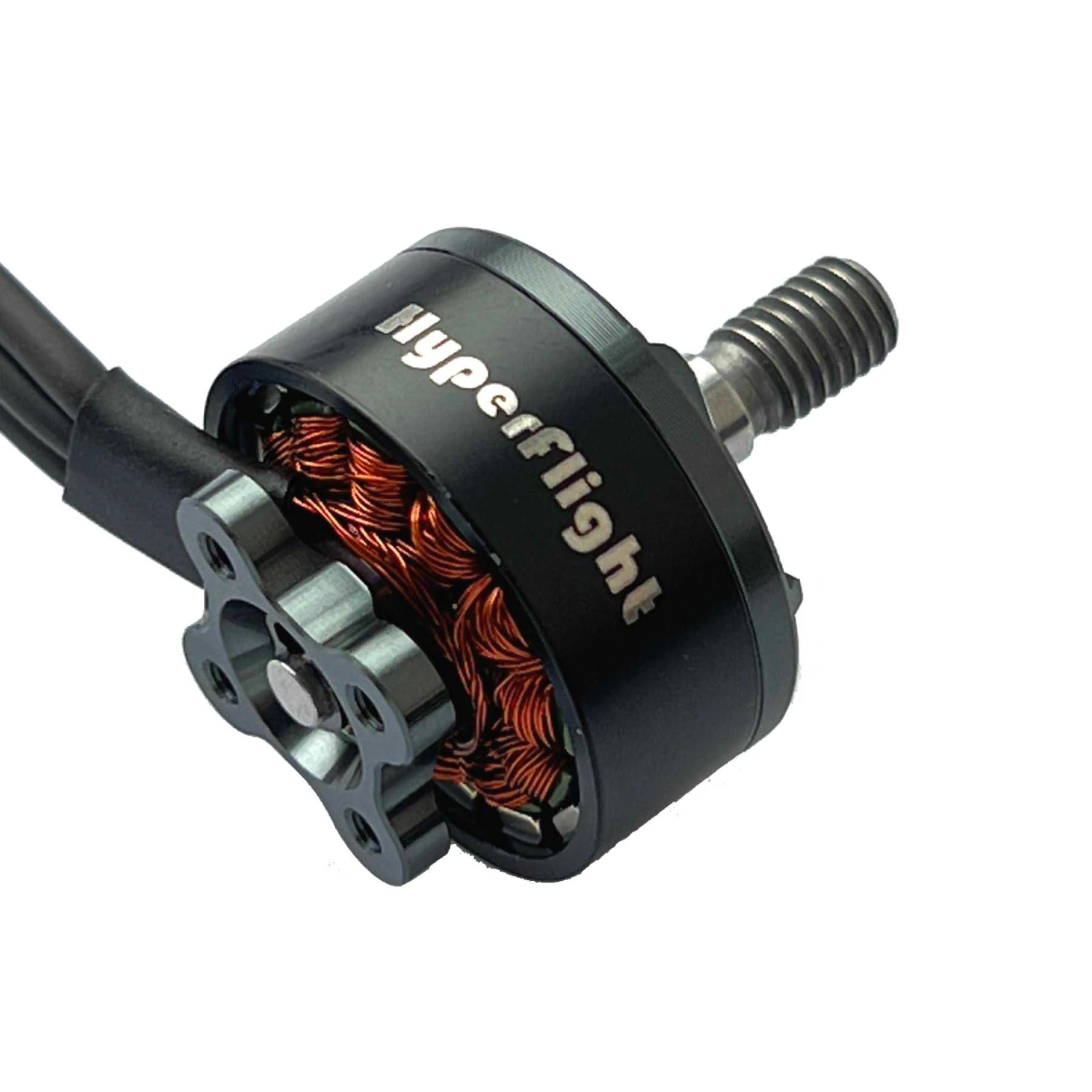

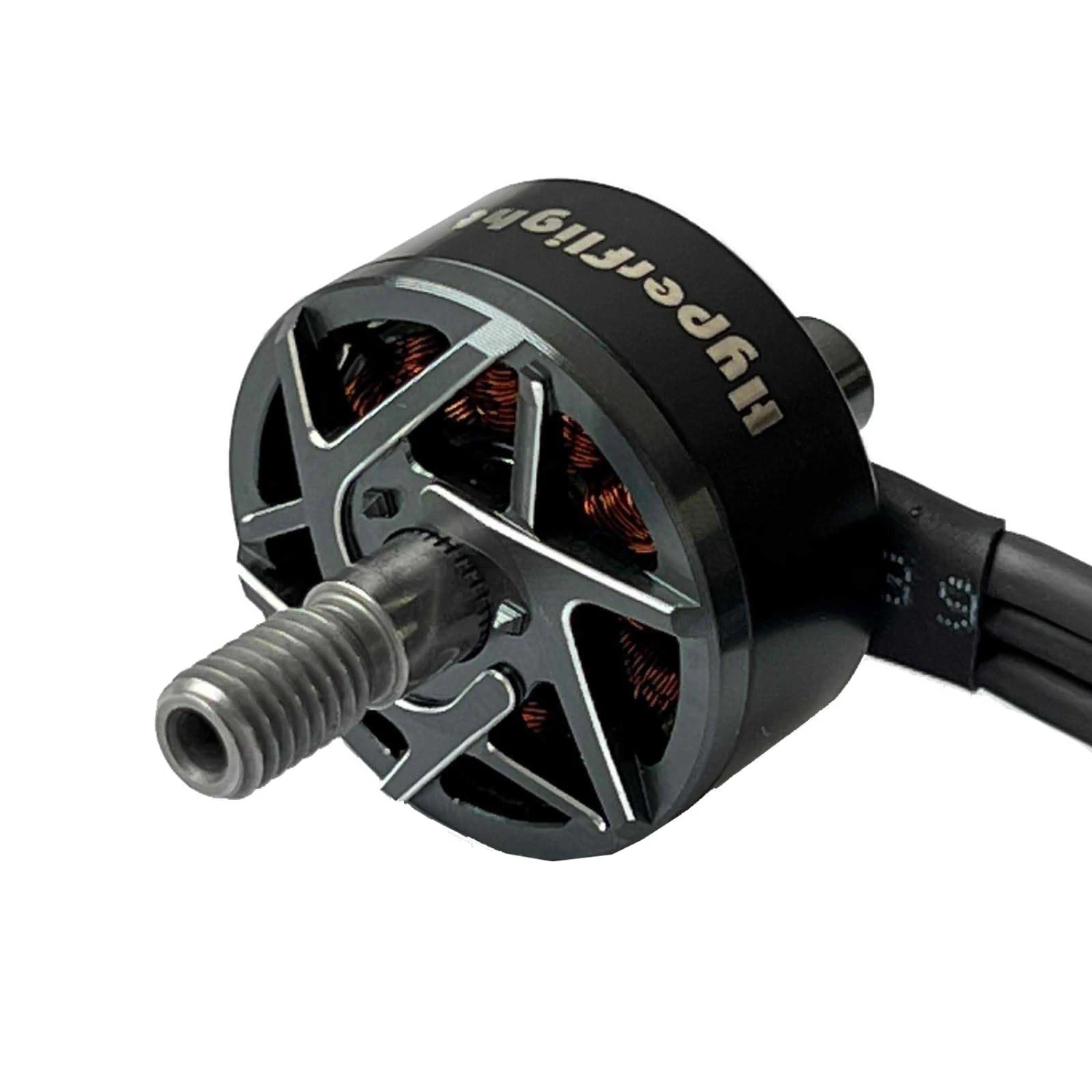

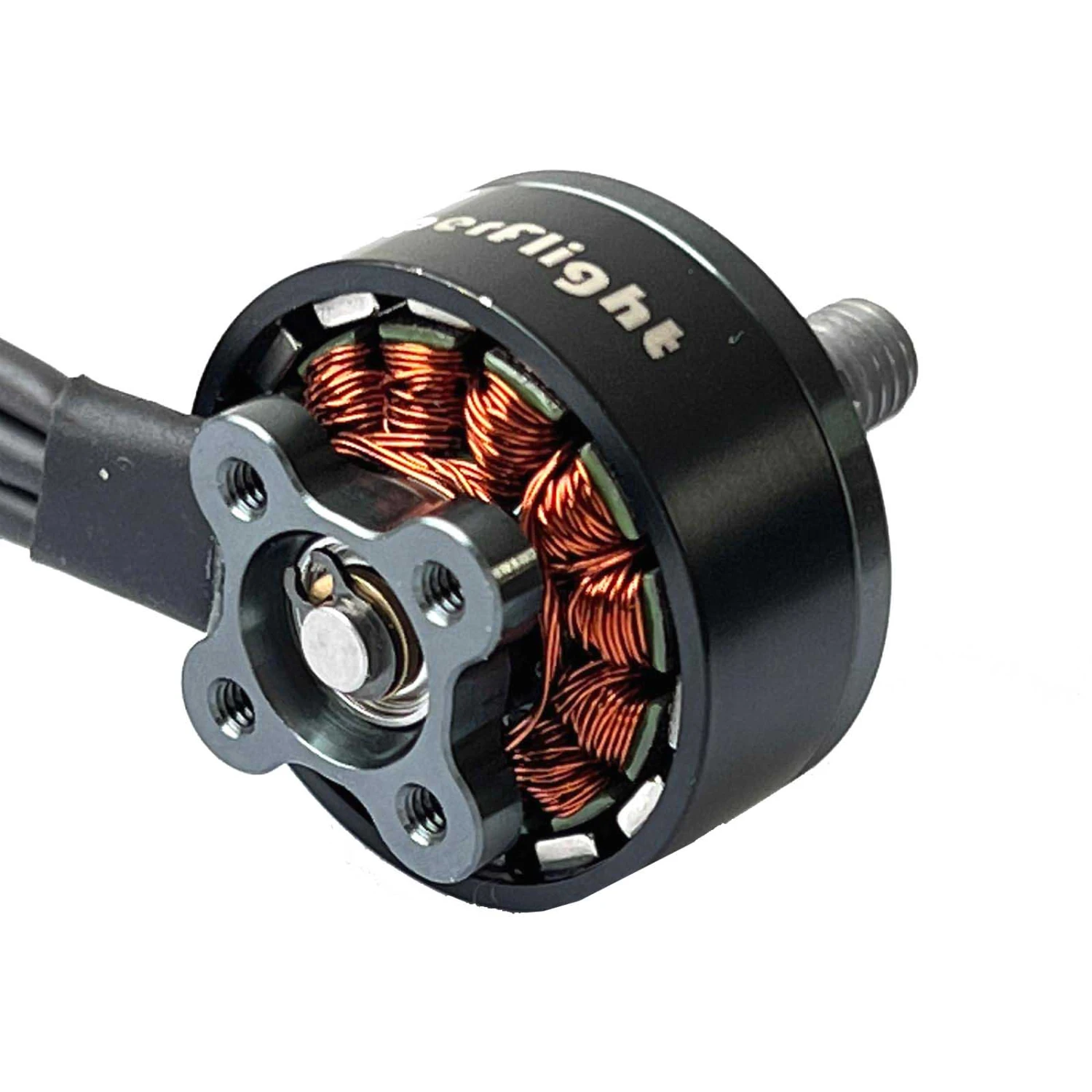

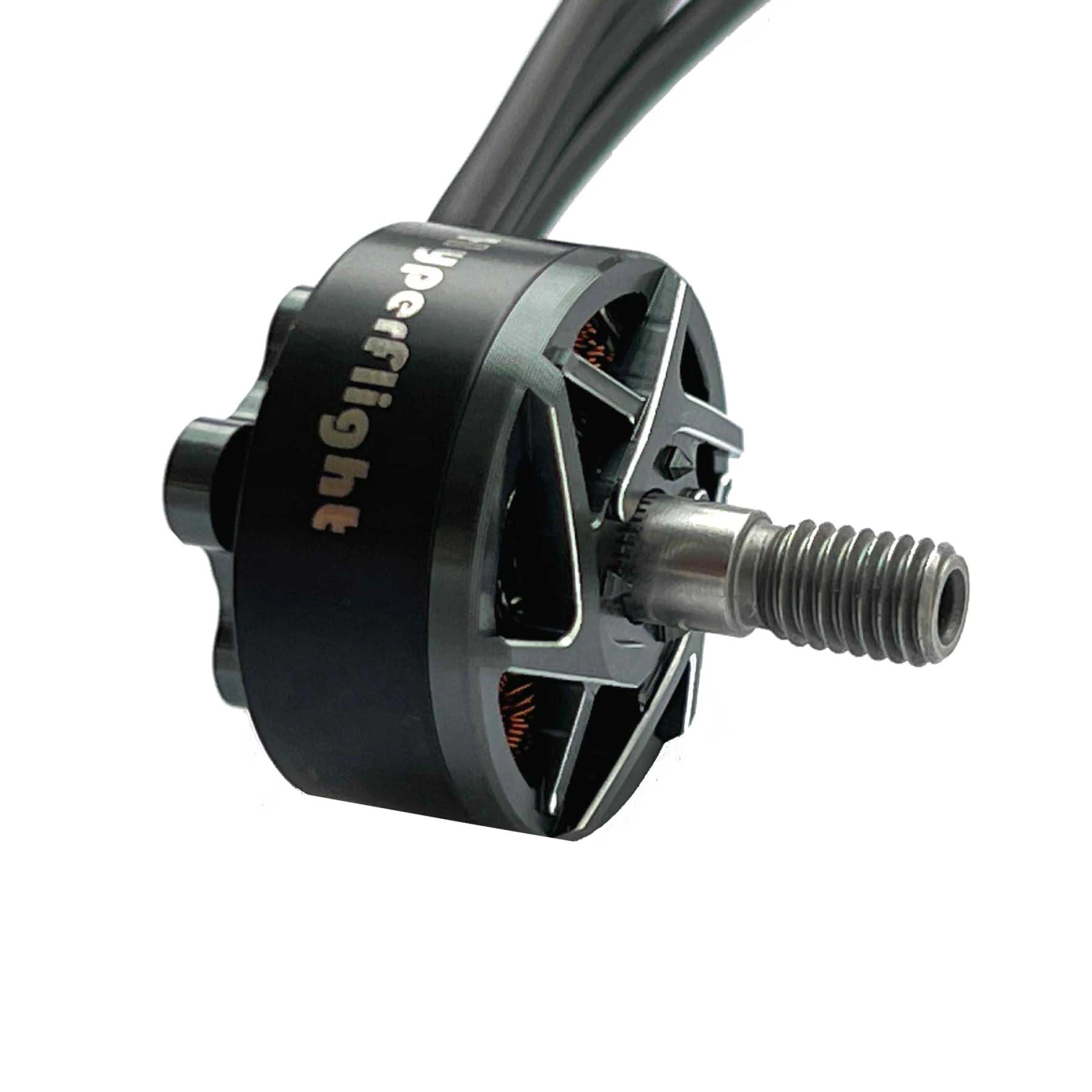

HyperFlight 1806 2450 RPM/V 20g Outrunner

The HyperFlight 1806 has been optimised to make it perfect for F5K electric DLGs and small gliders. This good quality 20.5 g outrunner with a KV of 2450 RPM/V for F5K and other small models up to about 600 g.

The motor has a 5 mm diameter shaft threaded M5 so it works best with spinners designed for this, like the CN Models 25mm Spinner for 5mm shafts.

HyperFlight 1806 Specifications
Motor name	HyperFlight 1806	outrunner
Motor+GB weight	20.5 g	0.72 oz
Motor diameter	22.4 mm	0.88 in
Motor length	17.0 mm	0.67 in
Lead length	6.0 cm	2.30 in
Shaft diameter	5.0 mm	0.20 in
Mounting info	4 M2 holes on 12 mm circle
Measured Rm	124 mR
Measured Kv	2450 RPM/V
Measured Io	0.8 A @ 7 V
Recommended battery	2S-3S LiPo
Rec max LiPo capacity	0.5 Ah
Supplied accessories	4 Mounting screws

Static Tests
CN6x4, 2S LiPo measured 7.0A at 8.0V
