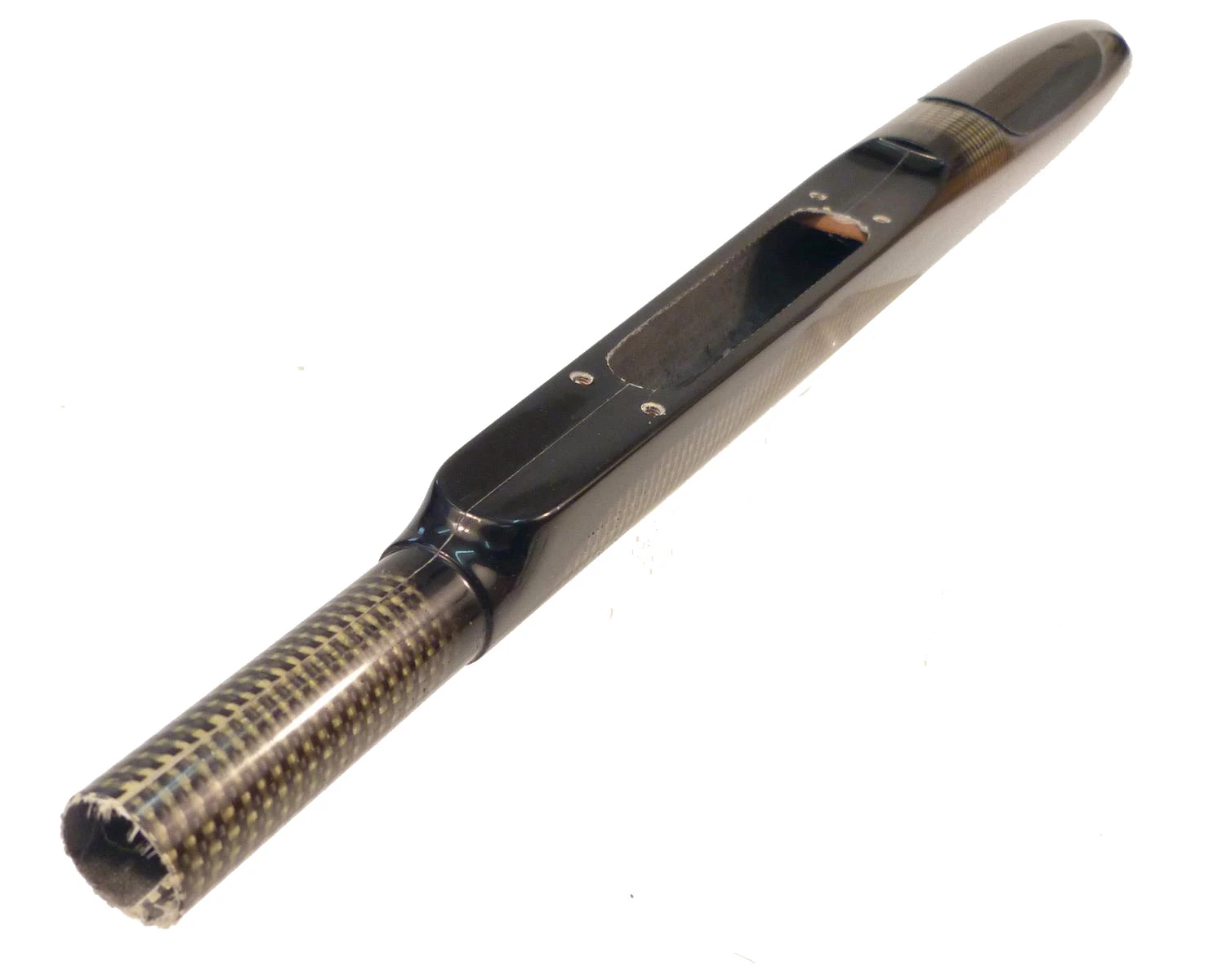

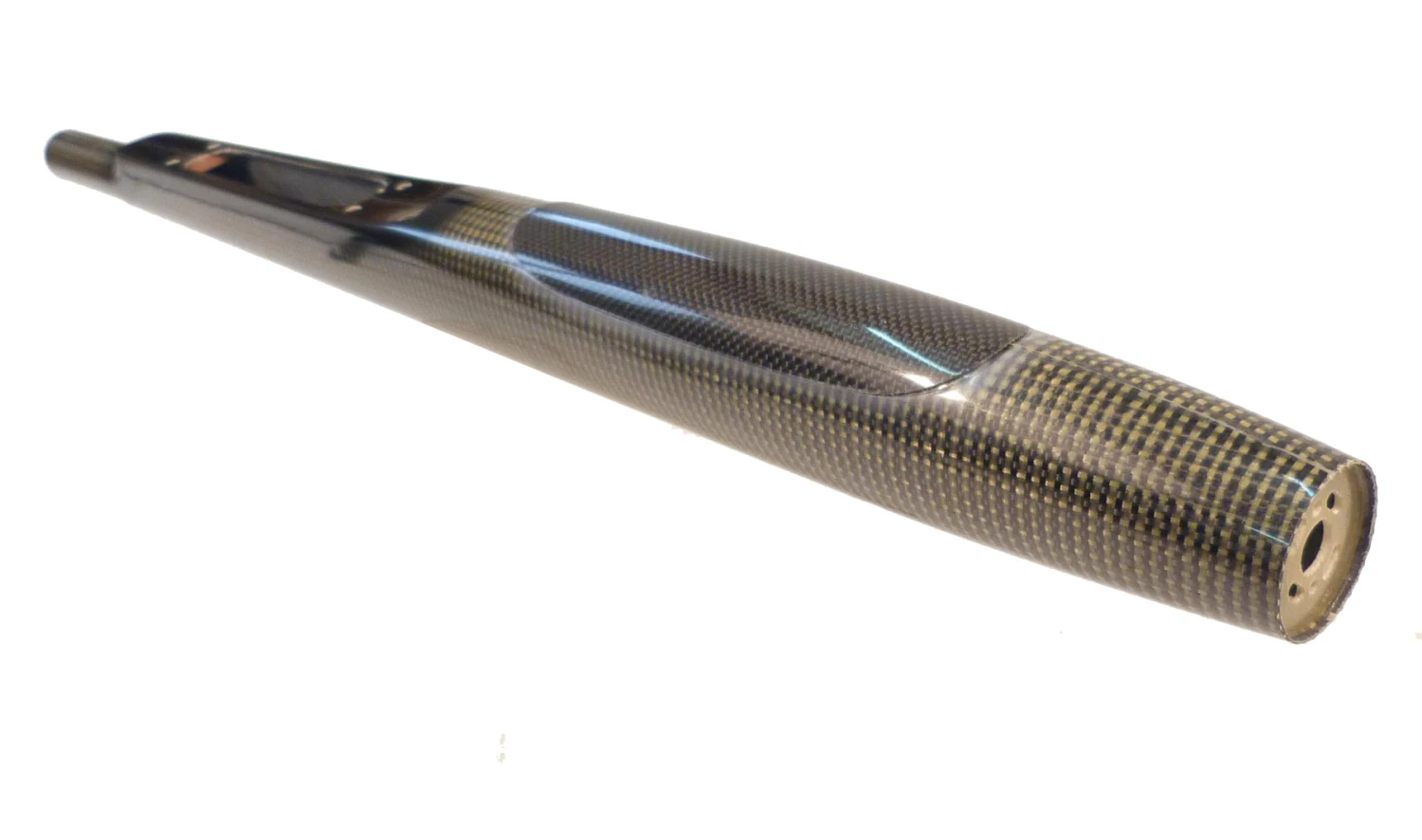

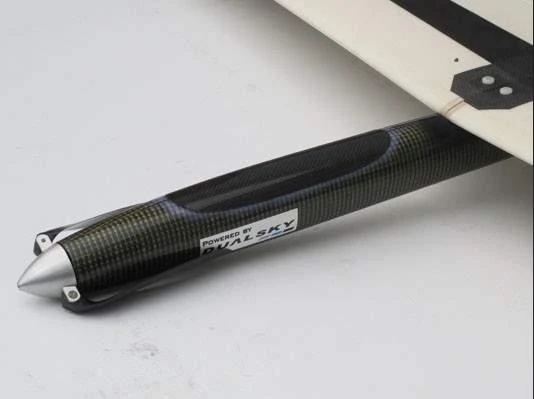

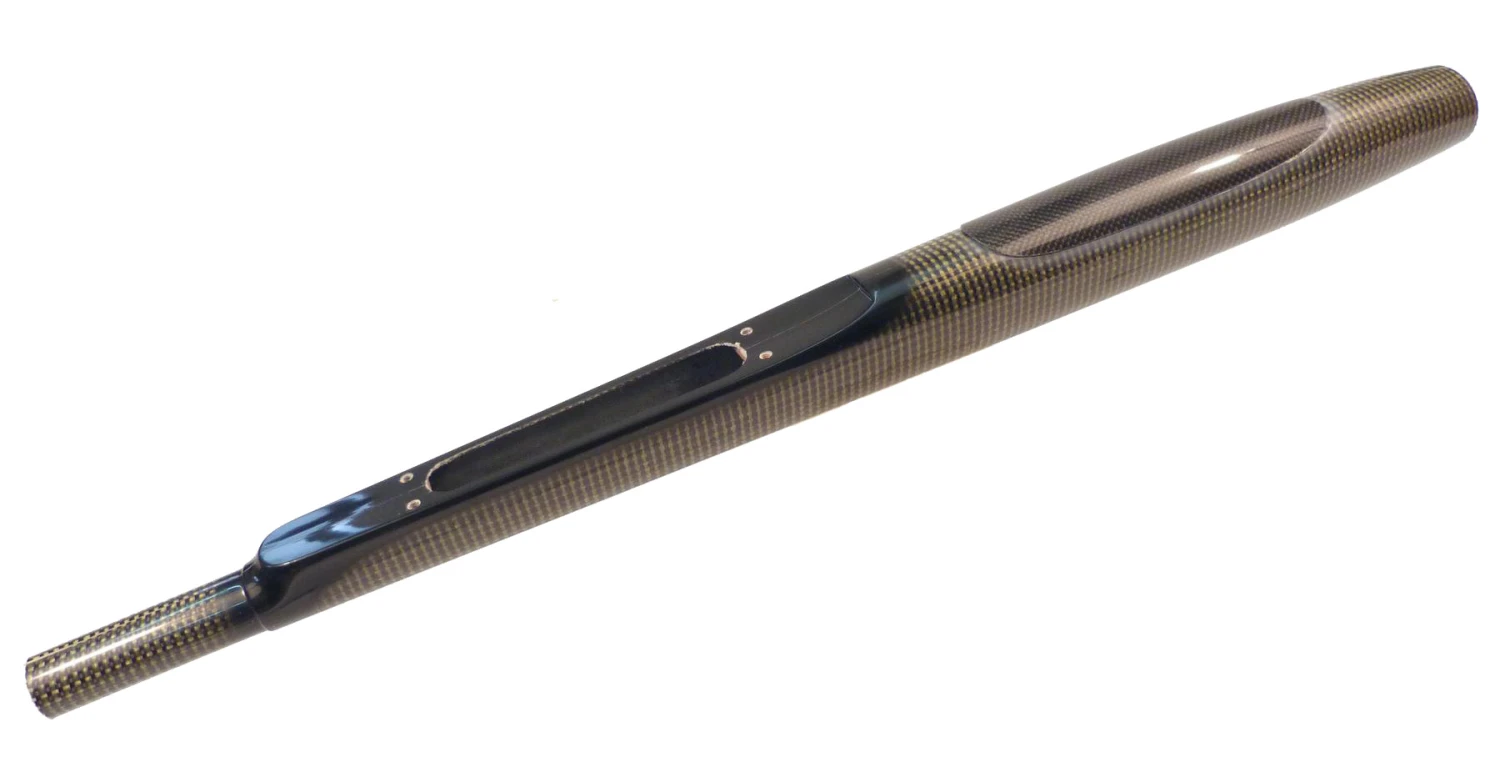

This ultralight pod has a light carbon/Kevlar layup. This is quite slim and the electric version requires a 32 mm spinner. Although a 28 mm diameter outrunner (eg Hacker A20-20L) can just be fitted getting the wires to clear the rotating case is problematic. It is easier to fit a 28 mm inrunner (eg Mega 16/15/5), a smaller ourtunner like the ADH300L or a geared inrunner like any of our Powerline range. Note the canopy hatch opening is only 12 cm x 2 cm but it can be opened up to a max of about 13.5 cm x 2.5 cm. A little bending will be required if fitting a motor over this size. Also it is perfectly okay to open it up by a few millimetres by filing or Dremelling away some of the material. This will not appreciably weaken the pod.

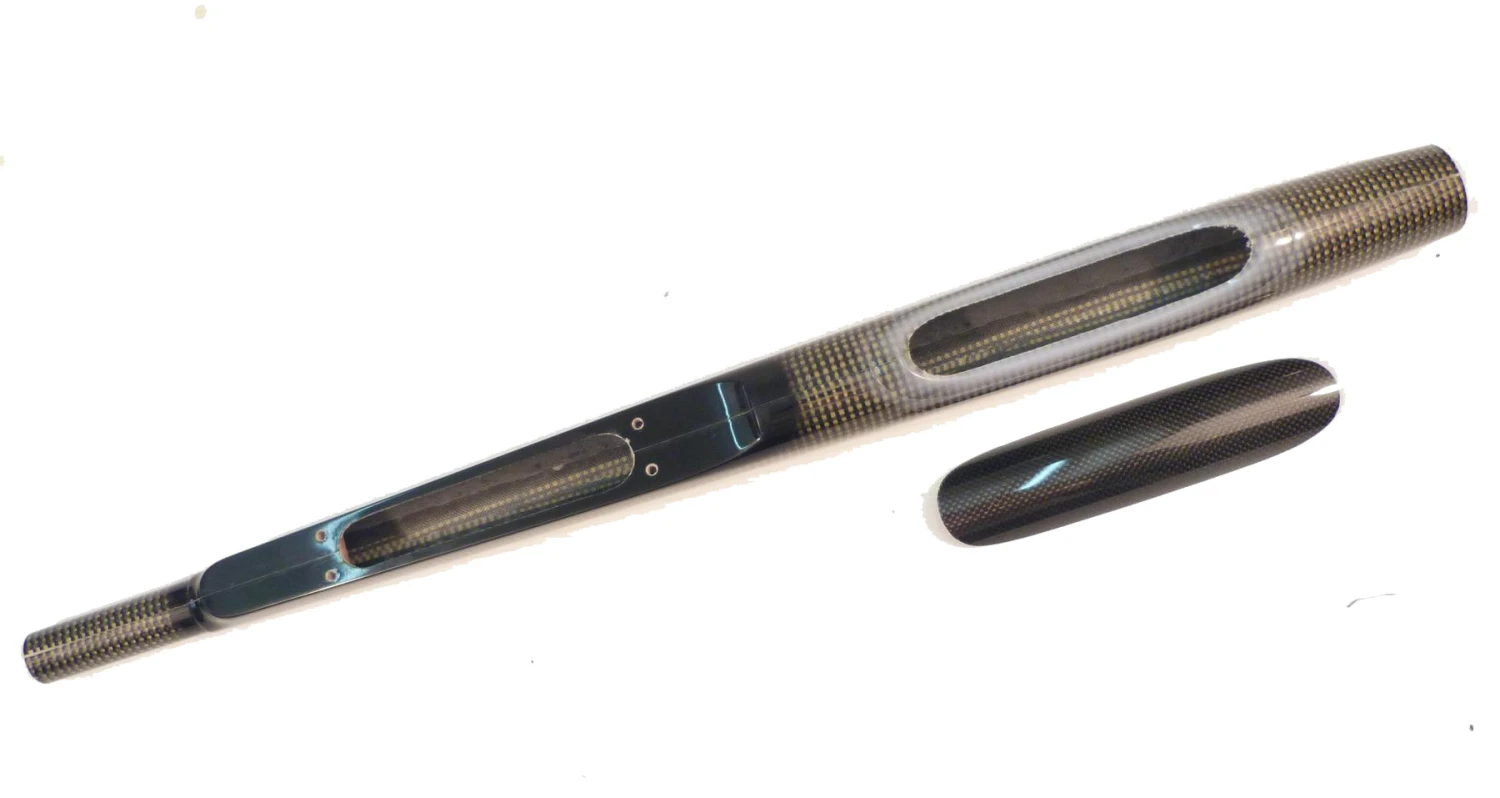

Supplied with a removable carbon canopy. The 22 mm boom is not included in the price and should be purchased separately. The AVA V mount fits this boom to make a complete Drela type pod-boom-tail mount fuselage.
Suitable for use on Bubble Dancer type and other home design RC gliders. For pure gliders a wooden nosecone can easily be glued in place.
| Geronimo Pod Specification | ||
|---|---|---|
| Electric pod length ex spigot | 46.5 cm | 18.4 in |
| Electric pod length inc spigot | 53.5 cm | 21.1 in |
| Nose to wing LE | 25.4 cm | 10.0 in |
| Boom spigot diameter | 21 mm | 0.86 in |
| Wing root chord approx | 20 cm | 8 in |
| Max wing chord | No limit | |
| Weight | 53 g | 1.9 oz |
| Spinner diameter | 32 mm | |
| Recommended boom wide end OD | 22 mm | |
