Fresh 2m

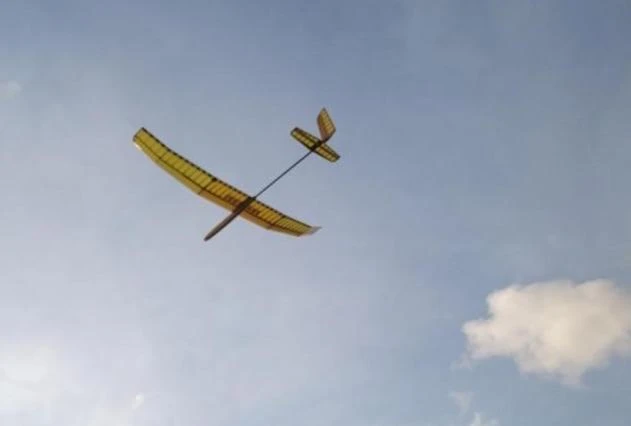

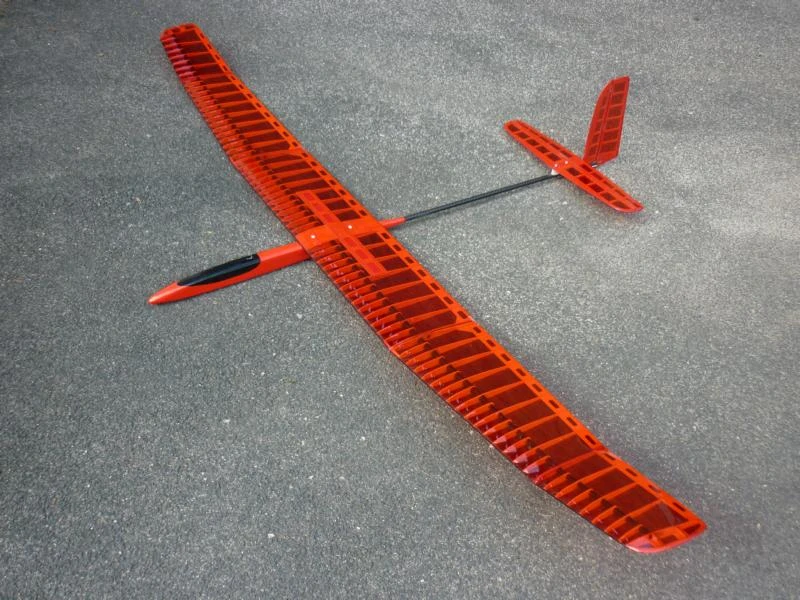

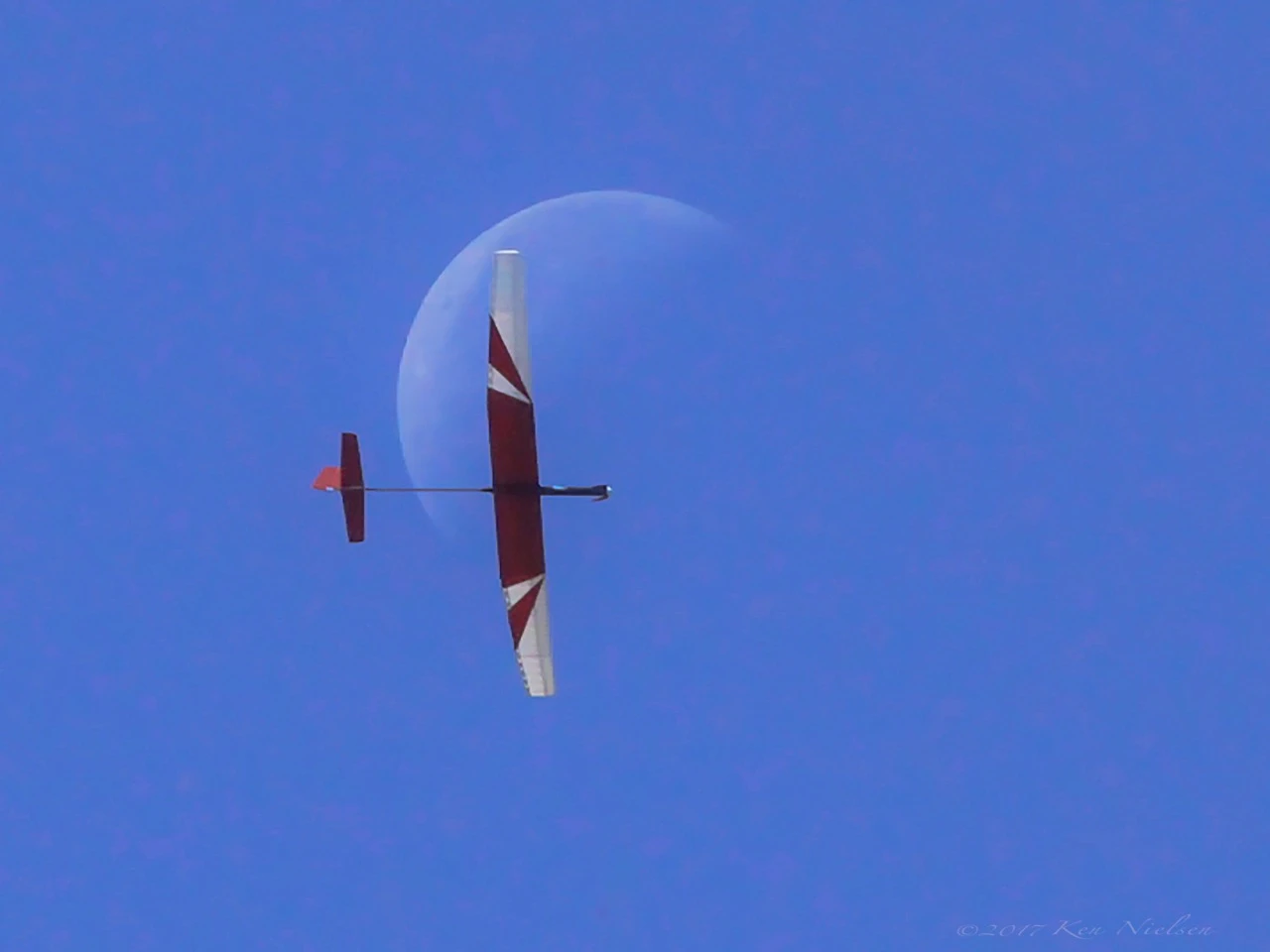

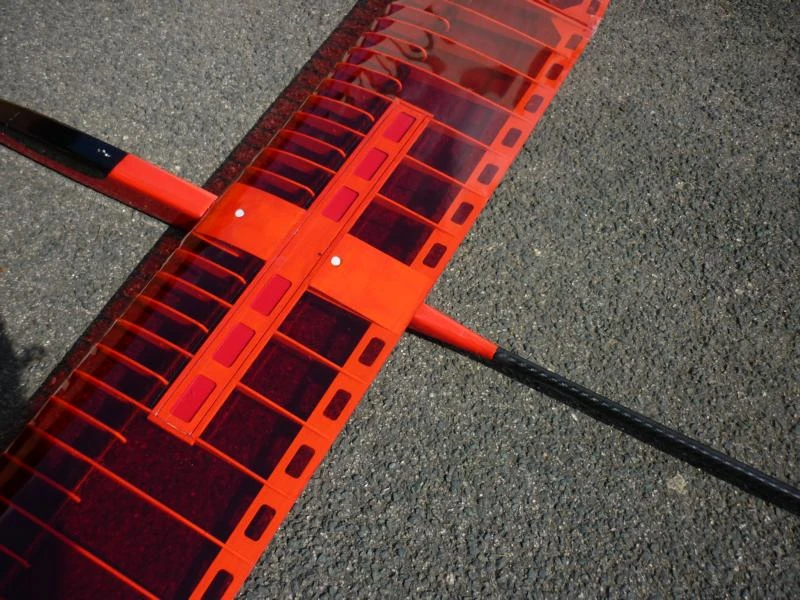

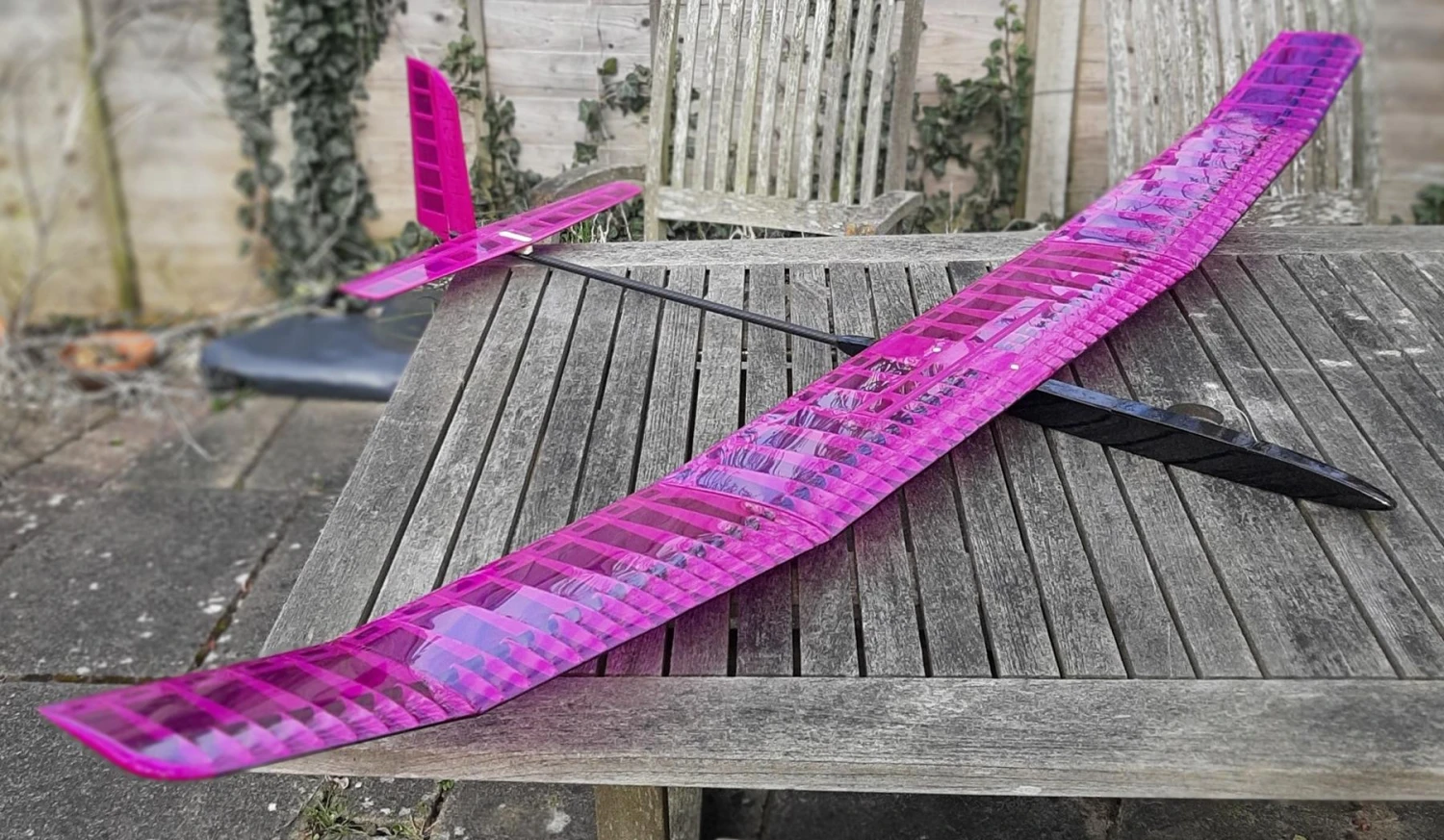

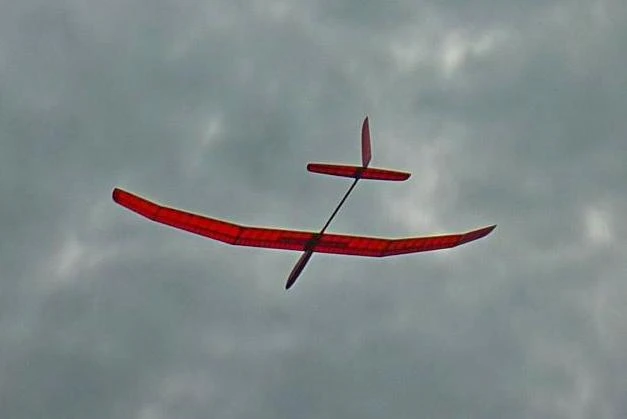

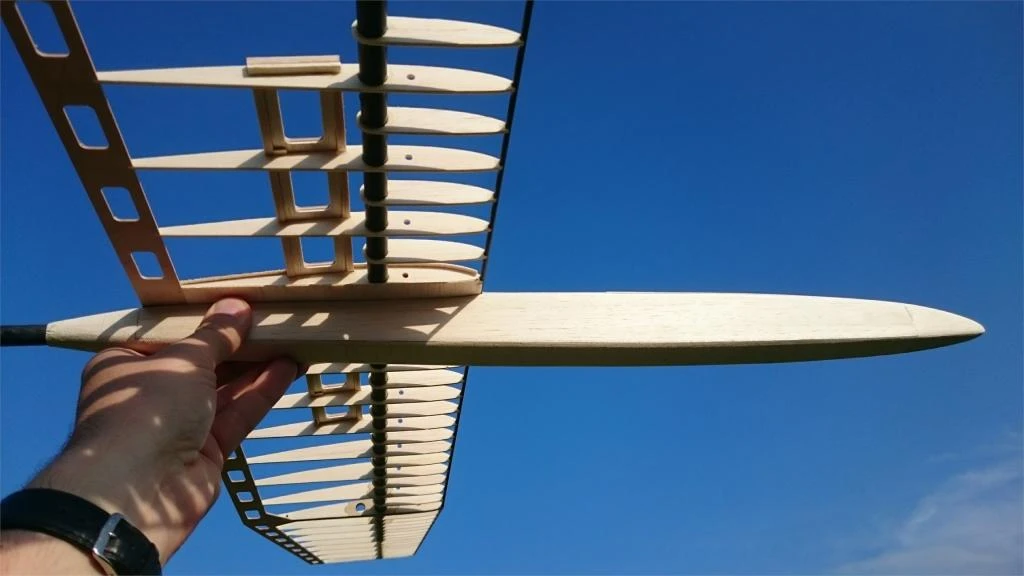

The Fresh F3-RES is a highly regarded F3-RES model that flies excellently and builds comparatively quickly. The big benefits of this model are its carbon tubular spars and carbon tailboom for lighter weight, and lower fuselage drag.

The design is simple, functional and robust. The model combines a very good glide angle with excellent thermal performance and good-natured handling. Although the Fresh was designed to win F3-RES competitions it also makes an excellent sport model. The model comes with two fuselage front formers, alowing it to be built as a pure glder or an electric glider. The electric version is designed for 30 mm spinners and the max internal motor diameter is about 25 mm.

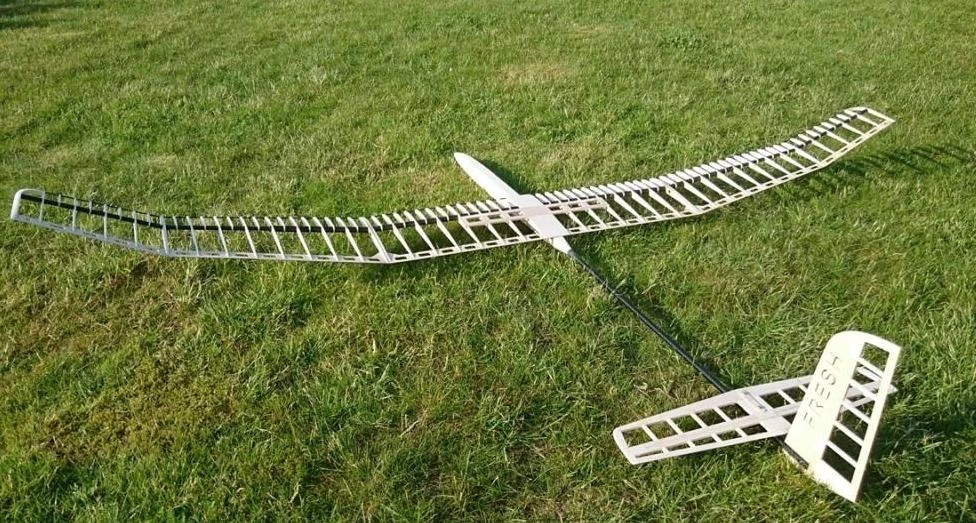

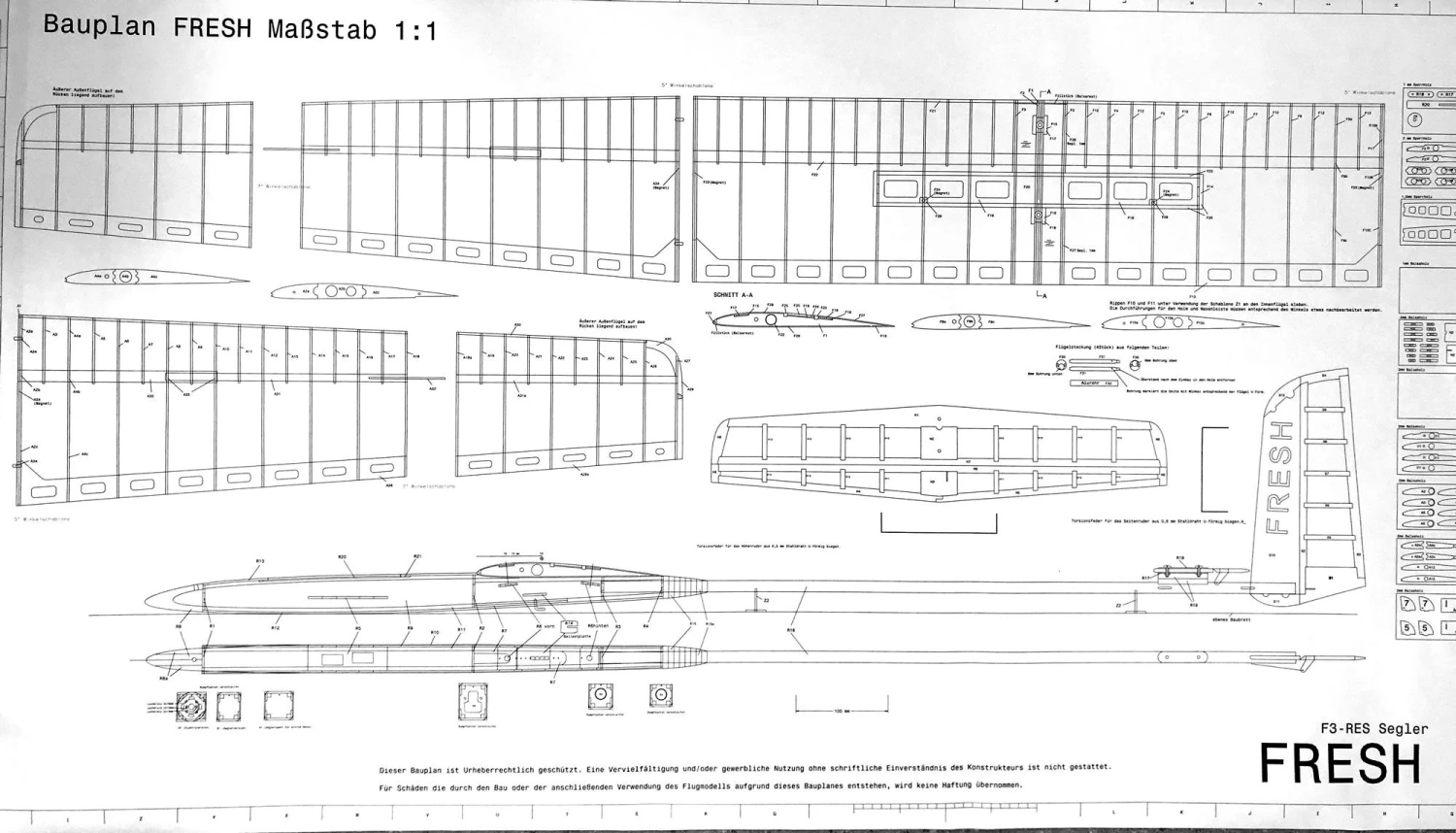

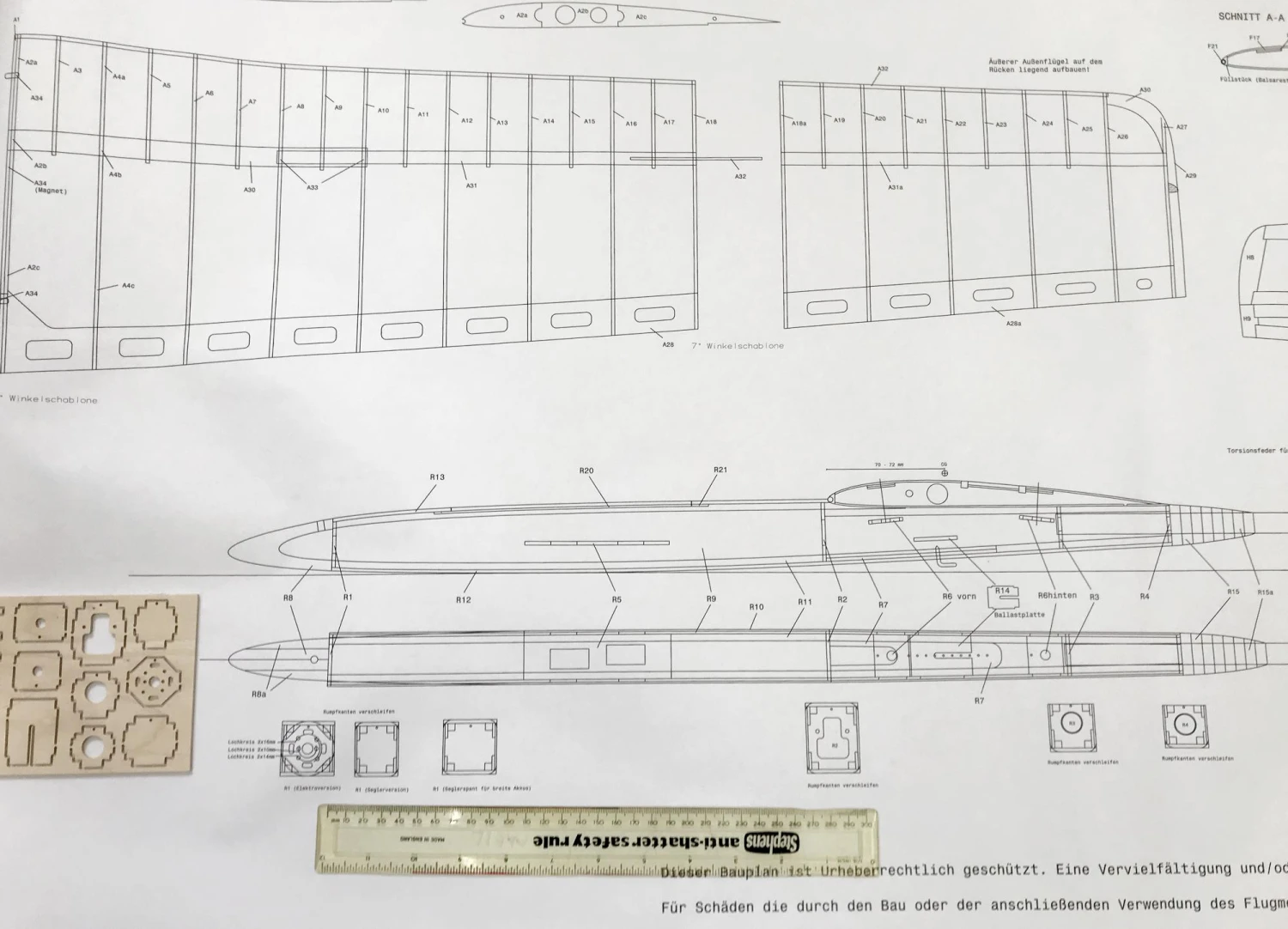

Like all the F3-RES models we sell this is a very complete builder’s kit made from top quality hand selected balsa, ply and carbon fibre tubes. The kit includes all wood, all small parts, and an excellent full scale plan.

See this German rc-network thread for more info. The English manual can be downloaded using the link below the More details heading.

Also please look a CJ Scott’s excellent series of videos on his YouTube channel.

Fresh F3-RES Specifications
Wing span	2.0 m	79 in
Wing area	35.6 dm2	552 sq in
Length	130 cm	51.2 in
Flying weight from	435 g	15.3 oz
Wing loading	12.2 g/dm2	4.0 oz/sq ft
Aspect ratio	11.2
Wing airfoil	AG36mod / AG37mod
Dihedral (EDA)	11.0º
Spinner dia (el version)	30 mm
Centre of Gravity	70 – 74 mm from wing leading edge
Controls	Rudder, elevator, spoiler

Fresh F3-RES Typical Weights
Bare structure	285.0 g	10.1 oz
Covering	45.0 g	1.6 oz
Total structure	330.0 g	11.6 oz
Wiring	10.0 g	0.4 oz
Receiver	6.0 g	0.2 oz
Rudder servo	5.0 g	0.2 oz
Elevator servo	5.0 g	0.2 oz
Spoiler servo	9.0 g	0.3 oz
Battery	55.0 g	1.9 oz
Noseweight	15.0 g	0.5 oz
Flying weight	435.0 g	15.3 oz

Recommended RC
Rudder & elevator servos	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10H, Graupner DES 261
Spoiler servo	Blue Bird BMS-101DMG, Blue Bird BMS-101HV, Blue Bird BMS-A10V, KST X08
Receiver	4 or 5 channel receiver to match your transmitter
Battery	HyperFlight 750 mAh 4.8V, Dream-Flight 300 mAh 4.8V NiMH, Dream-Flight 750 mAh 4.8V NiMH, HyperLipo 2S 300 mAh, 4 cell Eneloop 500-800 mAh NiMH

Electric Version Powertrain Recommendations
ADH300L / MM1914-1100 Front Mount	2S 600mAh LiPo, 9×5 folding prop
ADH300L / MM1914-1100 Front Mount	3S 450mAh LiPo, 8×4 folding prop
DYS D2225-17	2S 600mAh LiPo, 10×5 folding prop
DYS D2225-17	3S 450mAh LiPo, 8×4 folding prop
Hacker A10-7L geared 4:1	3S 450mAh LiPo, 12×10 folding prop
Hacker A10-7L geared 4:1	3S 450mAh LiPo, 13×8 folding prop
Hacker B20-18L geared 4:1	2S 600mAh LiPo, 12×7 folding prop
