Blue Bird BMS-127WV+ Servo – 5.3Kg.cm 0.05s 11.3g 10mm

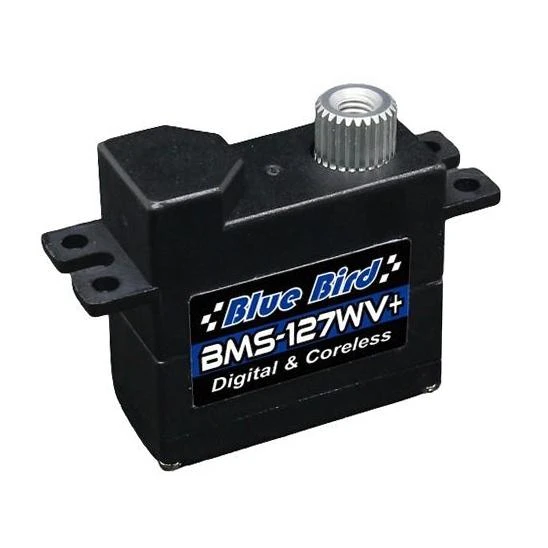

The Blue Bird BMS-127WV+ is the highest speed servo in the new Blue Bird BMS-125WV+/126WV+/127WV+ range of 11g servos. At 8.4V the speed of the BMS-127WV+ is an amazing 0.05 seconds per 60° of movement. The torque is slightly lower than the other servos in the series but is still very good at 5.3 Kg.cm. It is suitable for all ailerons and elevators on lighter F5J models, most gliders up to 3 m wingspan and many RC sports models and helicopters. It is especially good for heli tail rotors. At 10 mm thick it is suitable for mounting in small fuselages and thin wings and tails.

The WV in the name stands for Wide Voltage, indicating that this servo has wide range of acceptable supply voltages and is suitable for 1S LiPo, 4 or 5 cell NiMH and 2S LiPo operation.

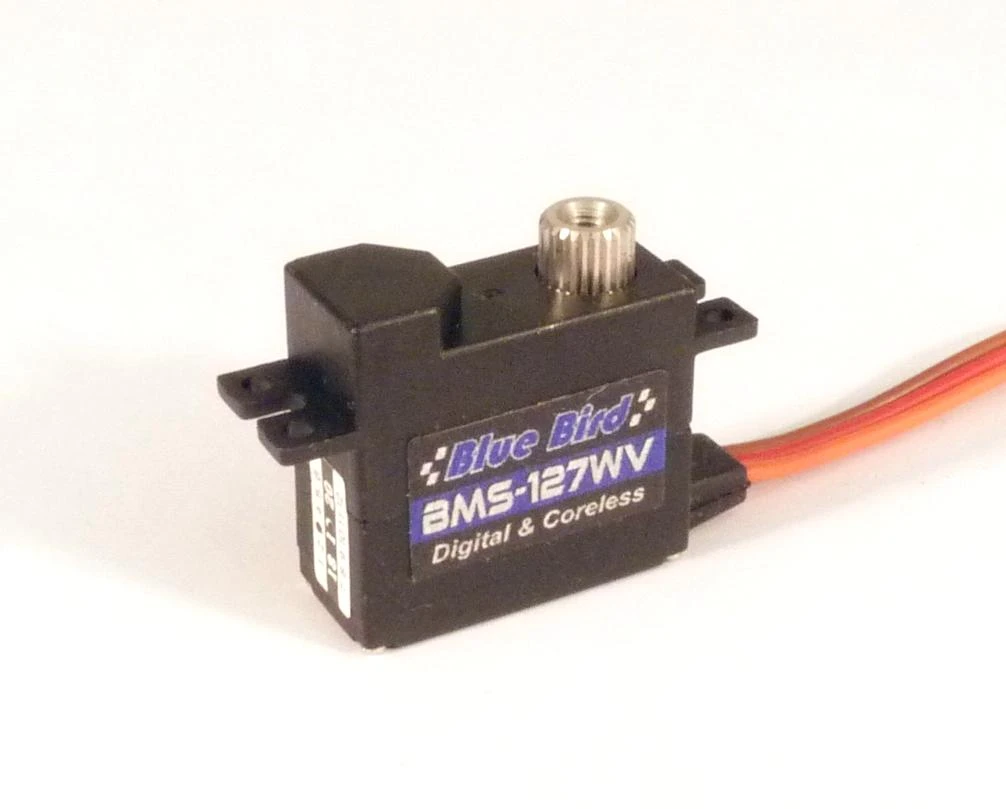

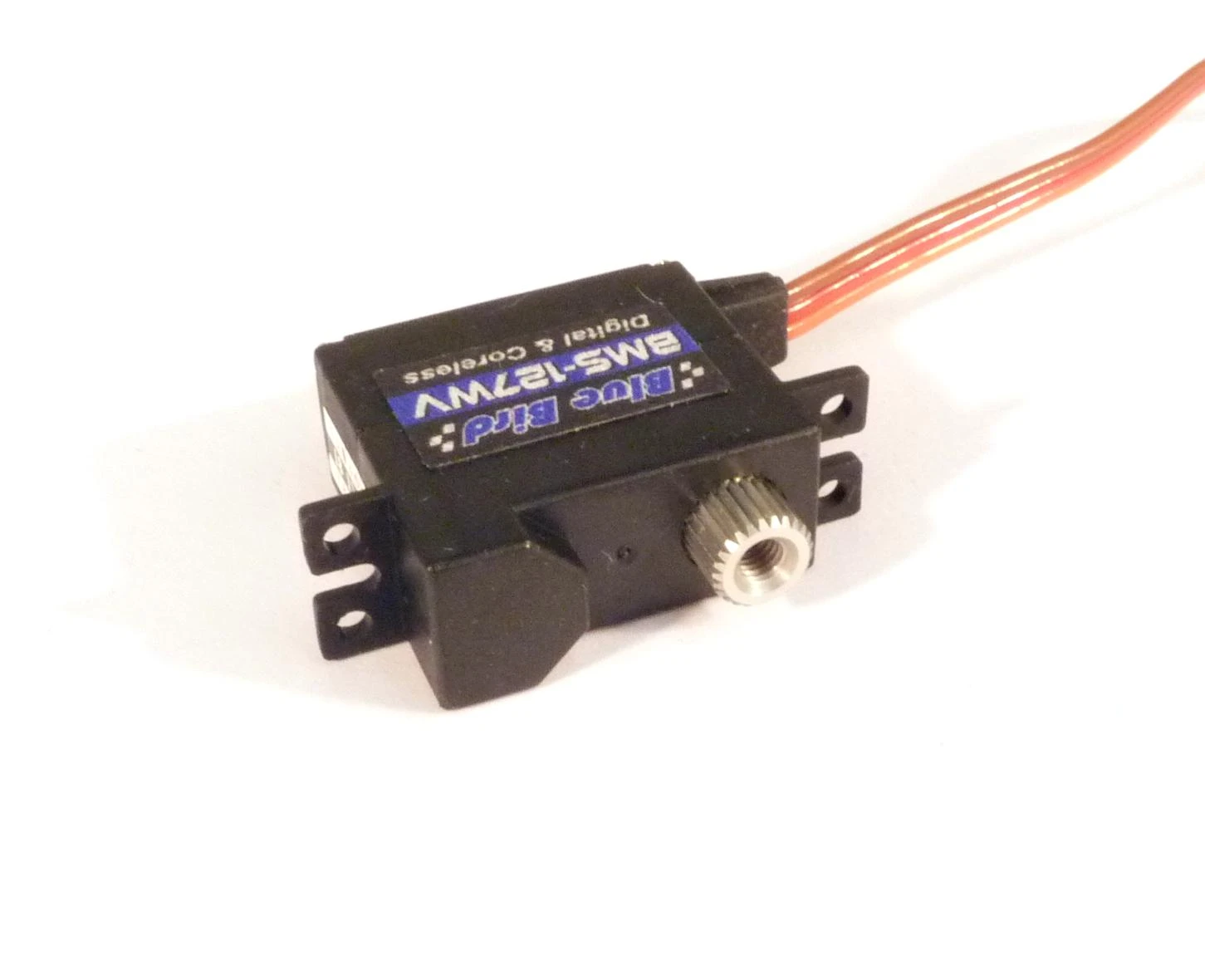

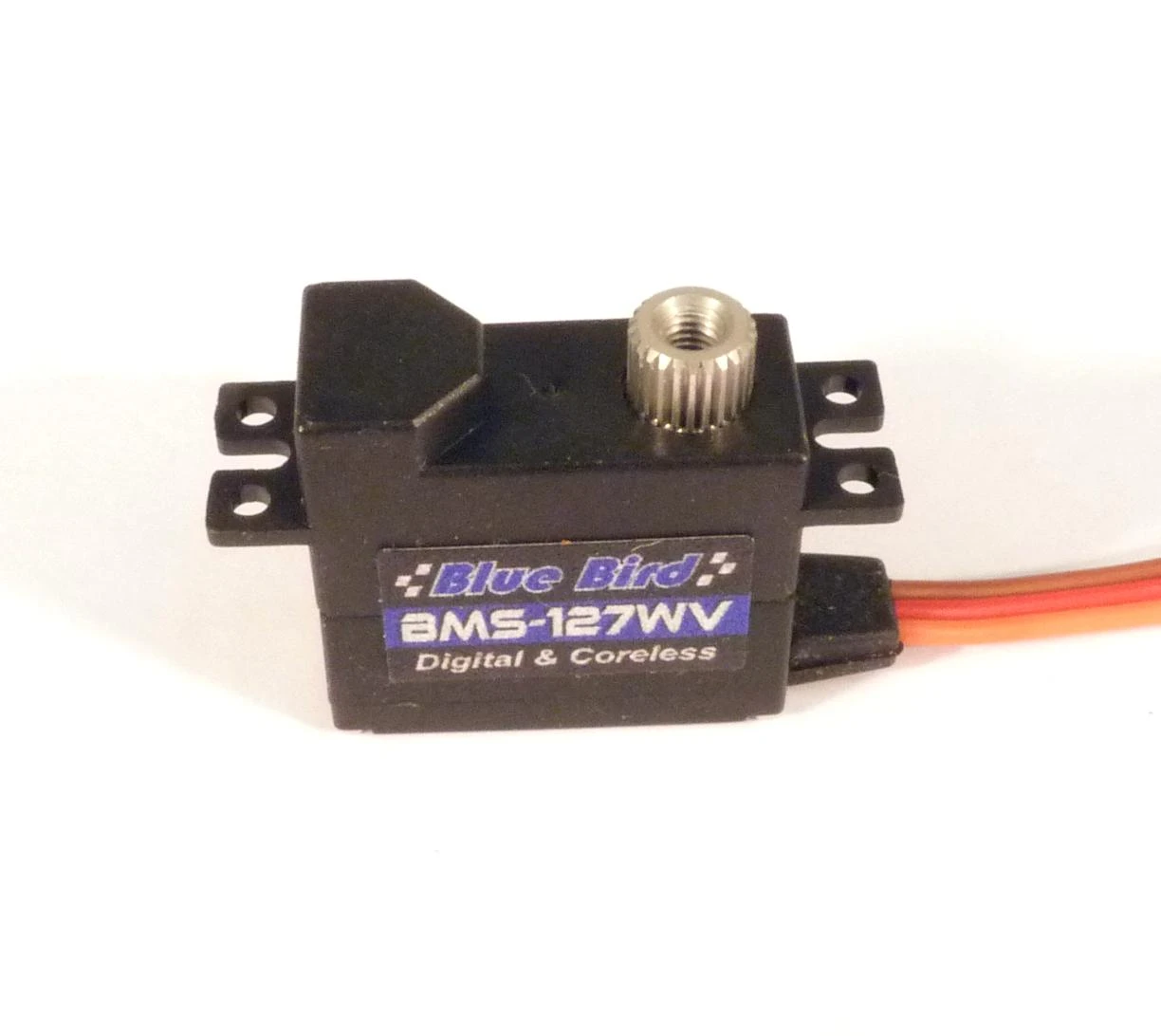

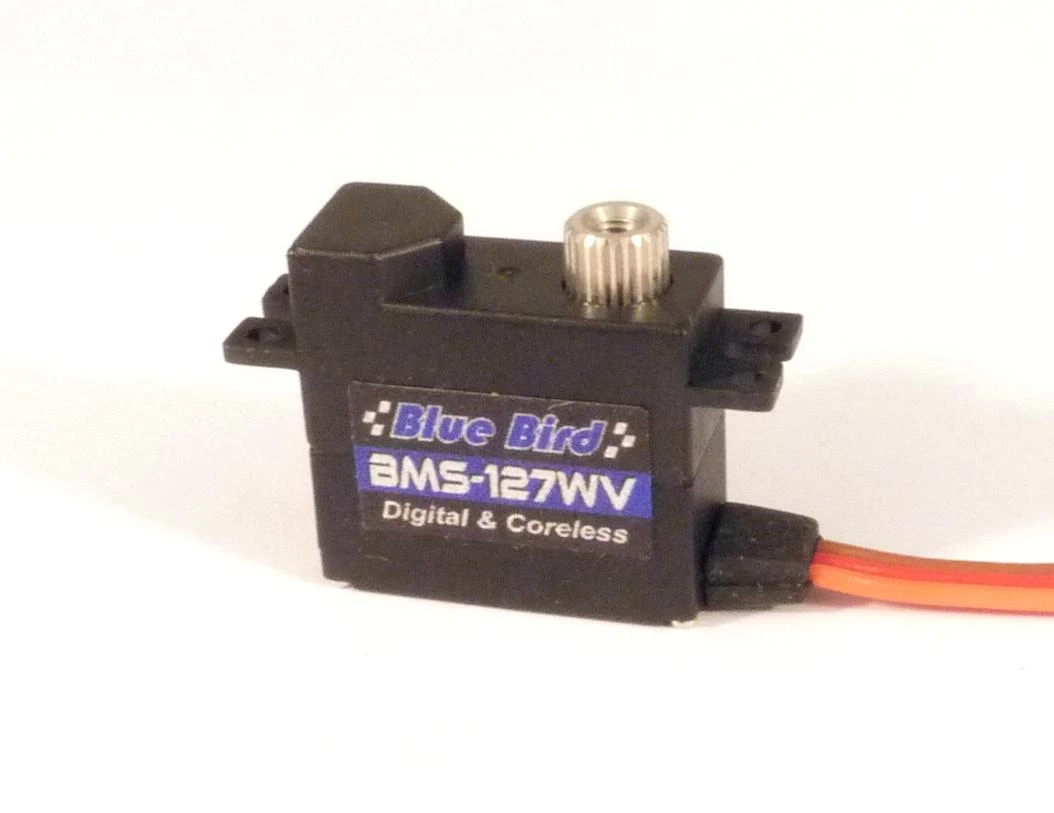

The + plus moniker on these servos is to indicate this version is an upgrade on the BMS-125WV we previously sold. Some of the photos still show the BMS-127WV as apart from the label the new servo looks identical.

The Blue Bird BMS-127HV+ is a great servo built to the same space saving form factor as the MKS DS6100 and HV6100. It is similarly precise, with no free play in the geartrain, and is much faster than the competing product. The large output spline is identical to Futaba 25 tooth splines, so replacement output arms are readily available. Note the output spline is not the same as MKS so the servo cannot be used with most MKS accessories.

Although looking like the BMS-105HV, the BMS-127 WV+ uses new components, better bearings and an improved internal design and does not suffer the longevity problems that affected some high hours BMS-105 installations. The BMS-107HV was not affected by the problem anyway.

Blue Bird BMS-127WV+ Servo Specifications
Body dimensions	23.2 mm wide x 10.0 mm thick x 23.0 mm high	0.91″ wide x 0.39″ thick x 0.91″ high
Max dimensions	32.0 mm wide x 10.0 mm thick x 25.0 mm high	1.26″ wide x 0.39″ thick x 0.98″ high
Stall torque (3.7V)	2.5 Kg.cm	35 oz.in
Stall torque (6V)	4 Kg.cm	56 oz.in
Stall torque (8.4V)	5.3 Kg.cm	74 oz.in
Weight	11.3 g	0.40 oz
Lead length	16 cm	6.3 in
Operating speed (3.7V)	0.11 sec/60°
Operating speed (6V)	0.07 sec/60°
Operating speed (8.4V)	0.05 sec/60°
Operating voltage	3.5V to 8.4V
Operating temperature	0 to 40 °C
Bearings	2 ball bearings
Gear material	Metal alloy
Case material	Nylon
Motor type	Coreless DC motor
Working frequency	250 Hz
Dead band/resolution	2 µs
Pulse width for ± 60º	(L) 900 µs – (0°) 1520 µs- (R) 2100 µs
Digital	Yes
Programmable	No
Position feedback	Potentiometer

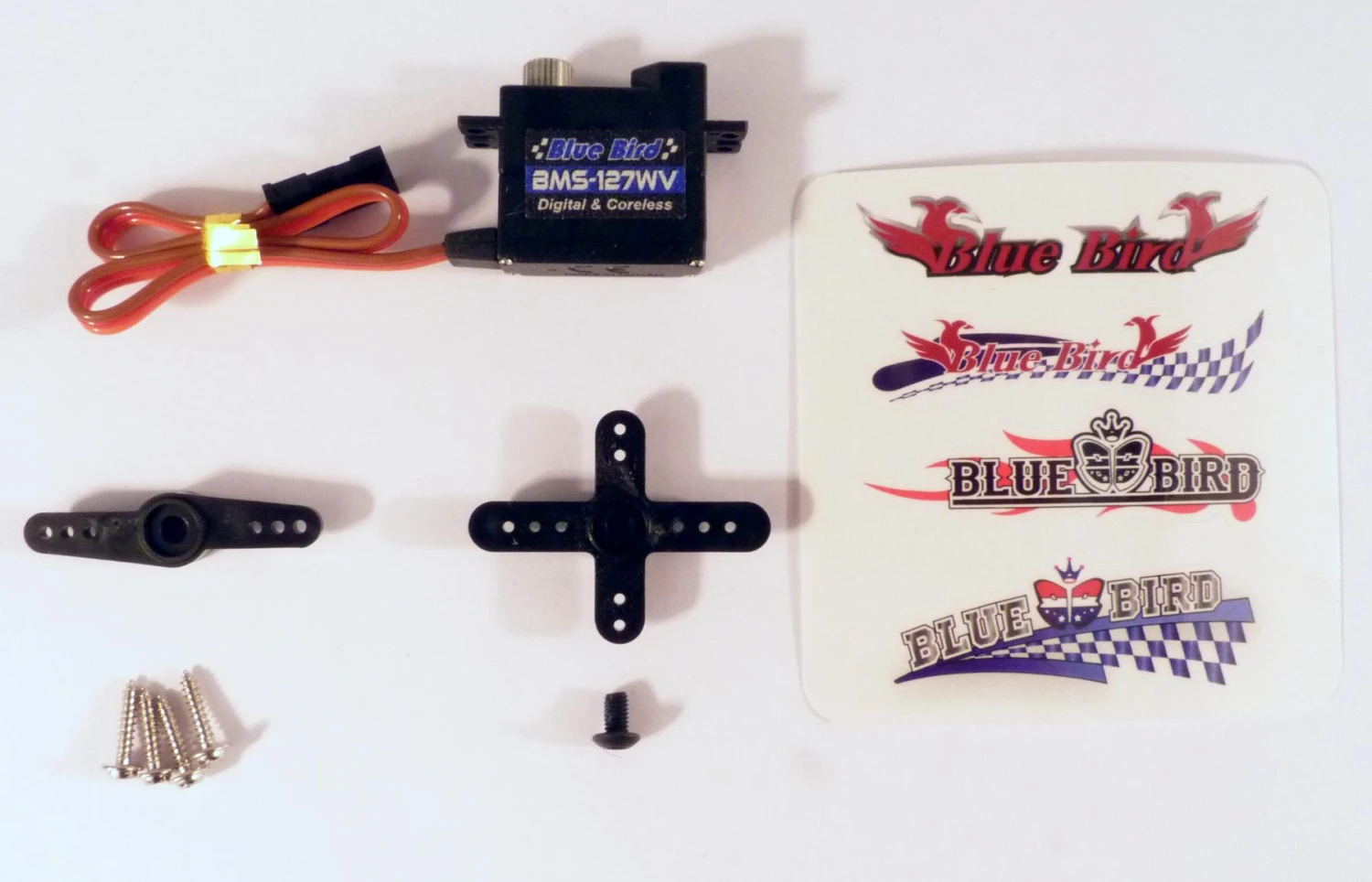

Supplied accessories	2 plastic output arms, 1 arm retaining screw, 4 mounting screws, Blue Bird sticker
Optional accessories	Ply Frame for BMS-125WV, Integrated Drive System/Mono for the Blue Bird BMS-125WV, Frame with bearing for the Blue Bird BMS-125WV
