Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!

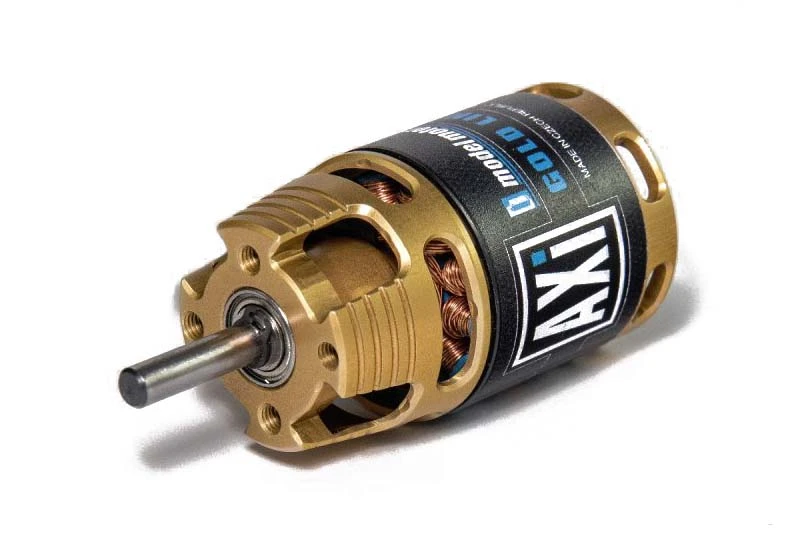

The Axi 2217/20 V2 Long F5J is the same as the Axi 2217/20 V2 Long motor but with a 4 mm shaft instead of a 3.17 mm shaft to better withstand F5J dork landings.
Axi 2217/20 V2 Long F5J TECHNICAL SPECIFICATION
No. of cells 2-4s Li-Poly
Kv 840 RPM/V
Max. efficiency 84%
Max. efficiency current 8 – 14 A (>75%)
No load current 0,4 A
Current capacity 20 A/60 s
Internal Resistance 185 mohm
Dimensions (Ø x L) 27,7 x 64,6 mm
Shaft diameter 4 mm
Weight 84 g
Max. Power 270 W
