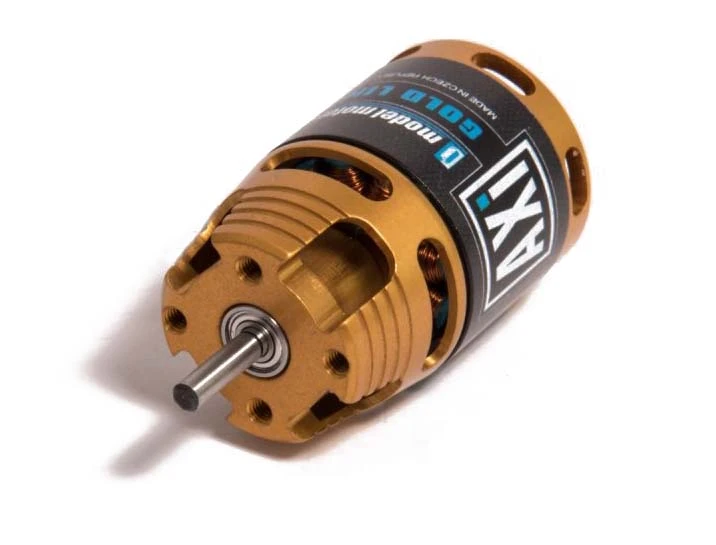

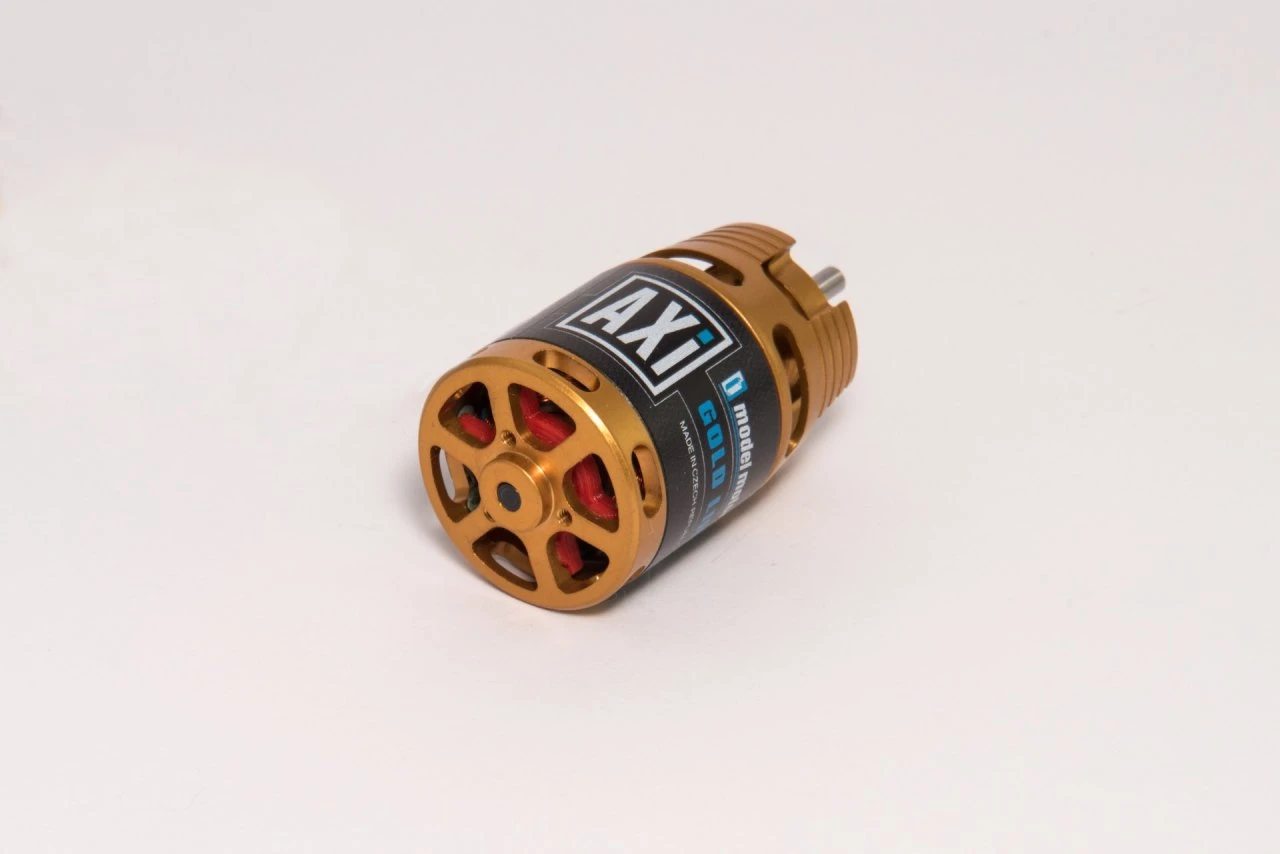

Axi 2217/20 V2 Long 840 RPM/V 74g Outrunner

The high quality and performance of AXI 2217 V2 motors meant that they were a perfect base for development of the new AXI 2217/20 GOLD LINE. New small and powerfull motor AXI 2217/20 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1000g and for light sailplanes up to 1200g. Hardened steel Shaft have 3.17mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. Delivered without prop. holder and Radial mount set!

The Axi 2217/20 V2 Long is the same as the Axi 2217/20 V2 Long F5J motor but with a 3.17 mm shaft instead of a 4 mm shaft. This makes it a bit lighter.

Axi 2217/20 V2 Long TECHNICAL SPECIFICATION
No. of cells 2-4s Li-Poly
Kv 840 RPM/V
Max. efficiency 84%
Max. efficiency current 8 – 14 A (>75%)
No load current 0,4 A
Current capacity 20 A/60 s
Internal Resistance 185 mohm

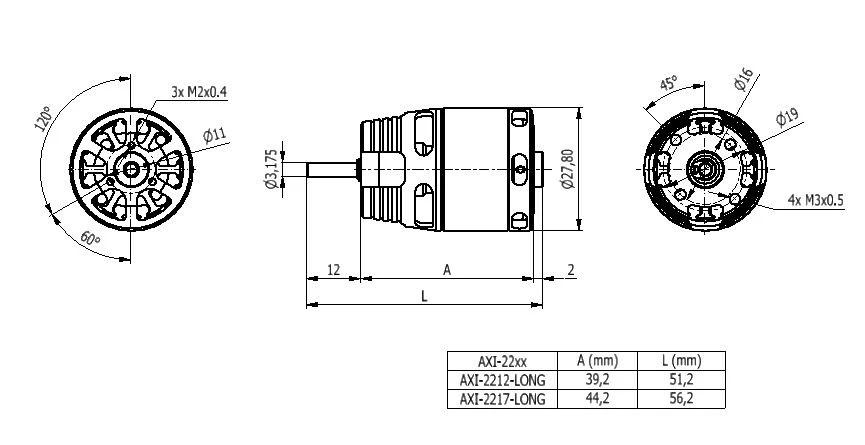

Dimensions (Ø x L) 27,7×44,4 mm
Shaft diameter 3.17 mm
Weight 74 g
Max. Power 270 W
