Axi 2208/34 V2 Long 1100 RPM/V 48g Outrunner

The Axi 2208 V2 Long motors have been specially commissioned by HyperFlight to allow smaller electric gliders to use glider-optimised direct drive outrunners which will fit in sleek glider noses.

The high power delivered by these small and very robust, brushless motors with rotating case suitable for all gliders and electric planes weighing up to 450 g. The hardened steel 3.17mm diameter shaft is supported by two large ball bearings which ensure very good mechanical reliability with front or radial mounting. As a result of using the latest ferromagnetic materials the AXI 2208/xx V2 Long motors offer extremely high efficiency and high load capability for their weight.
Kv 1100 RPM/V
Max. efficiency 83%
Max. efficiency current 4 – 7 A (>74%)
No load current 0,35 A
Current capacity 10 A/60 s
Internal Resistance 157 mohm
Dimensions (Ø x L) 27,7×25,5 mm
Shaft diameter 3,17 mm
Weight 48 g
No. of cells 3s Li-Poly
Max. Power 100 W
3S Prop: 10×5, 9×7, 9×6
2S Prop: 12×8, 12×7, 11×8

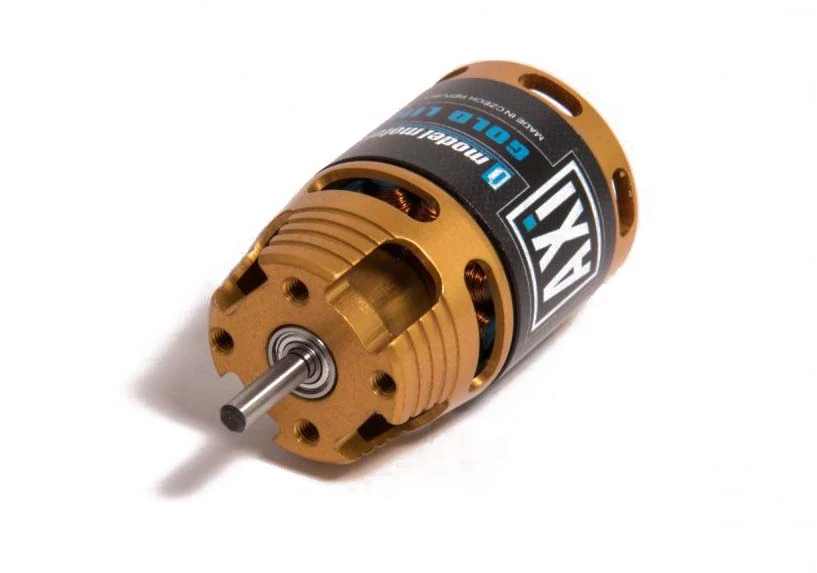

Note the photo temporarily shows the larger Axi 2212 V2 Long
