Altis Nano

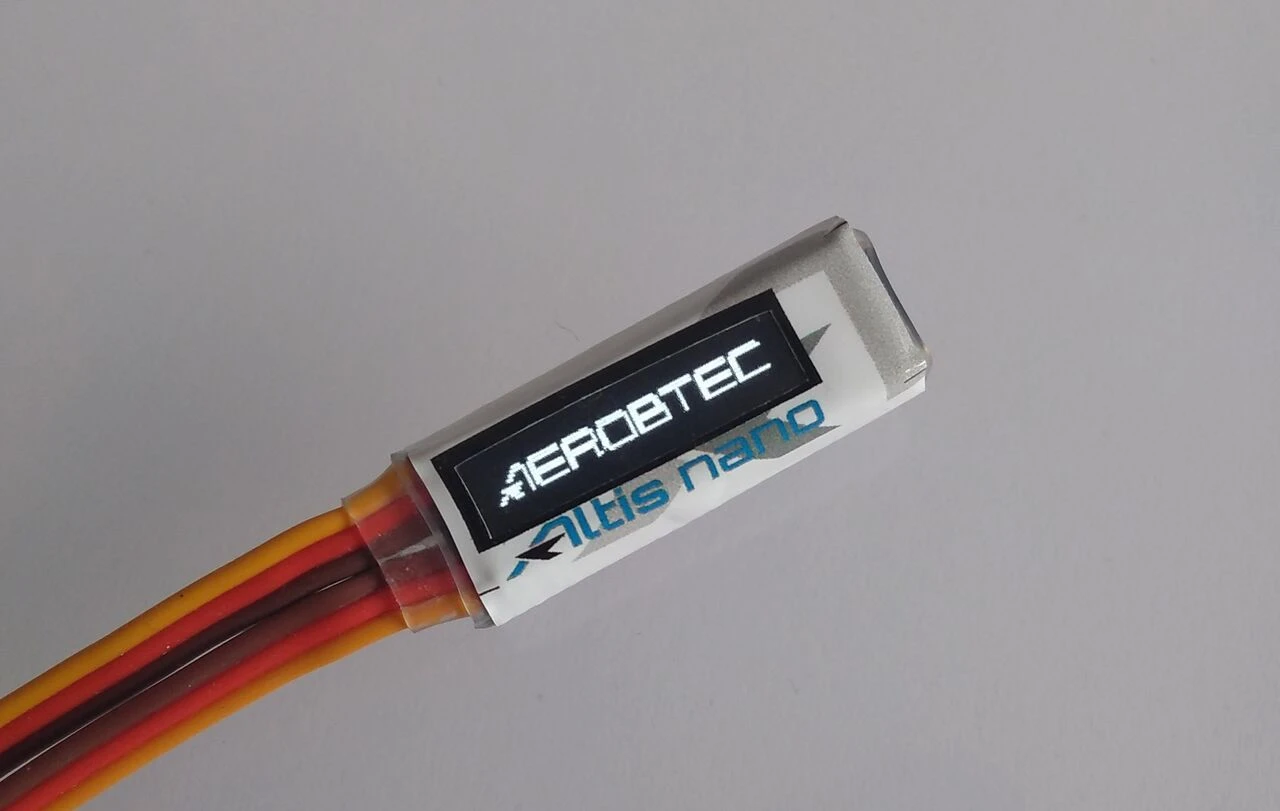

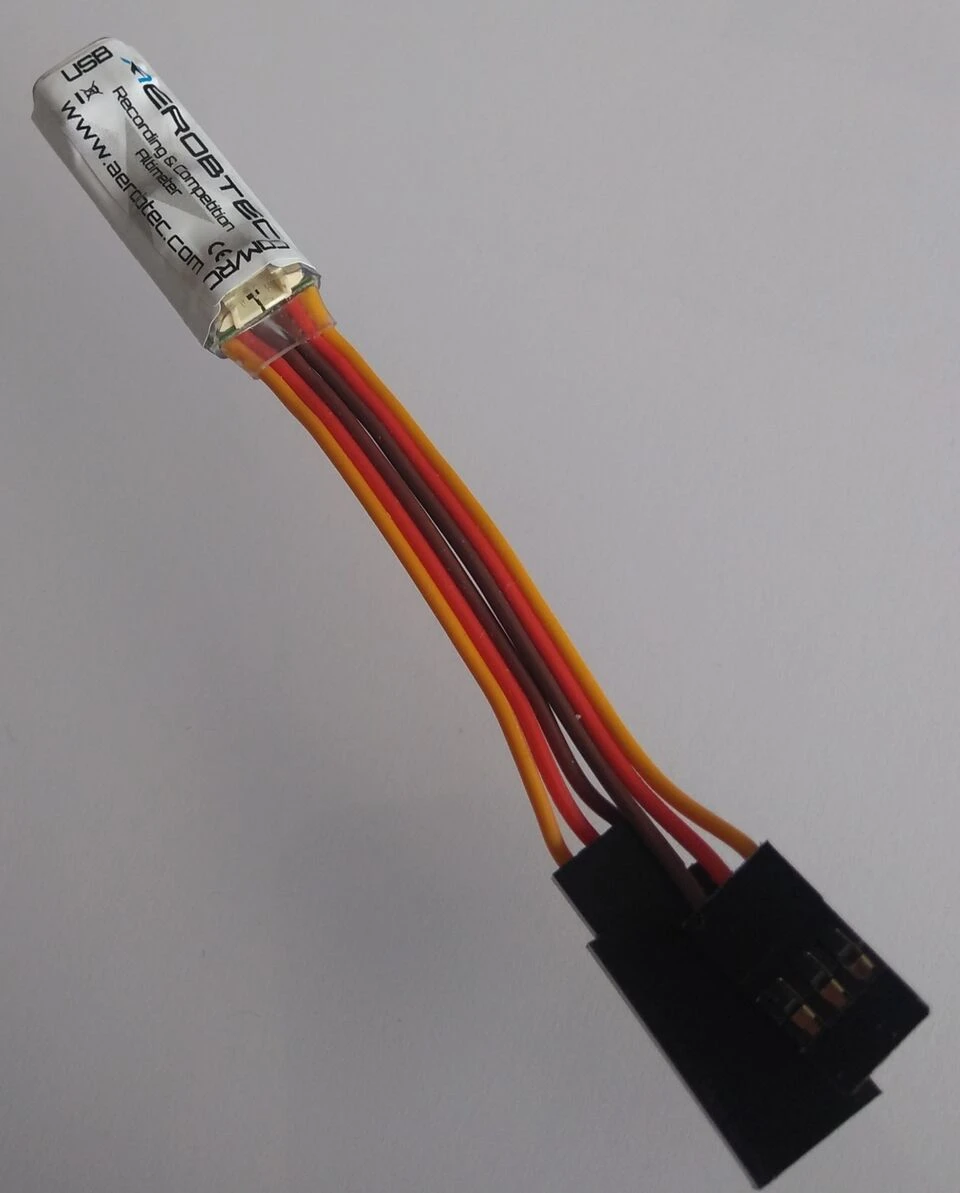

Aerobtec’s Altis Nano is their latest ultra miniature logging altimeter. It only weighs 6 g (0.21 oz) and is suitable for F5J and F3K models, and all RC aircraft and other flying objects that want to record the barometric altitude of the flight. The 0.3 m (1 ft) altitude resolution available using the high quality pressure sensor is much better than possible with GPS technology.

The Altis Nano is identical to the Altis V4+ except it has a smaller screen and one (not two) extension ports.

No Compromise
Get all what you expect from an altimeter in a ultra miniature form. Unlimited competition settings, live screen on integrated OLED display, telemetry, recording and more

Live Screen

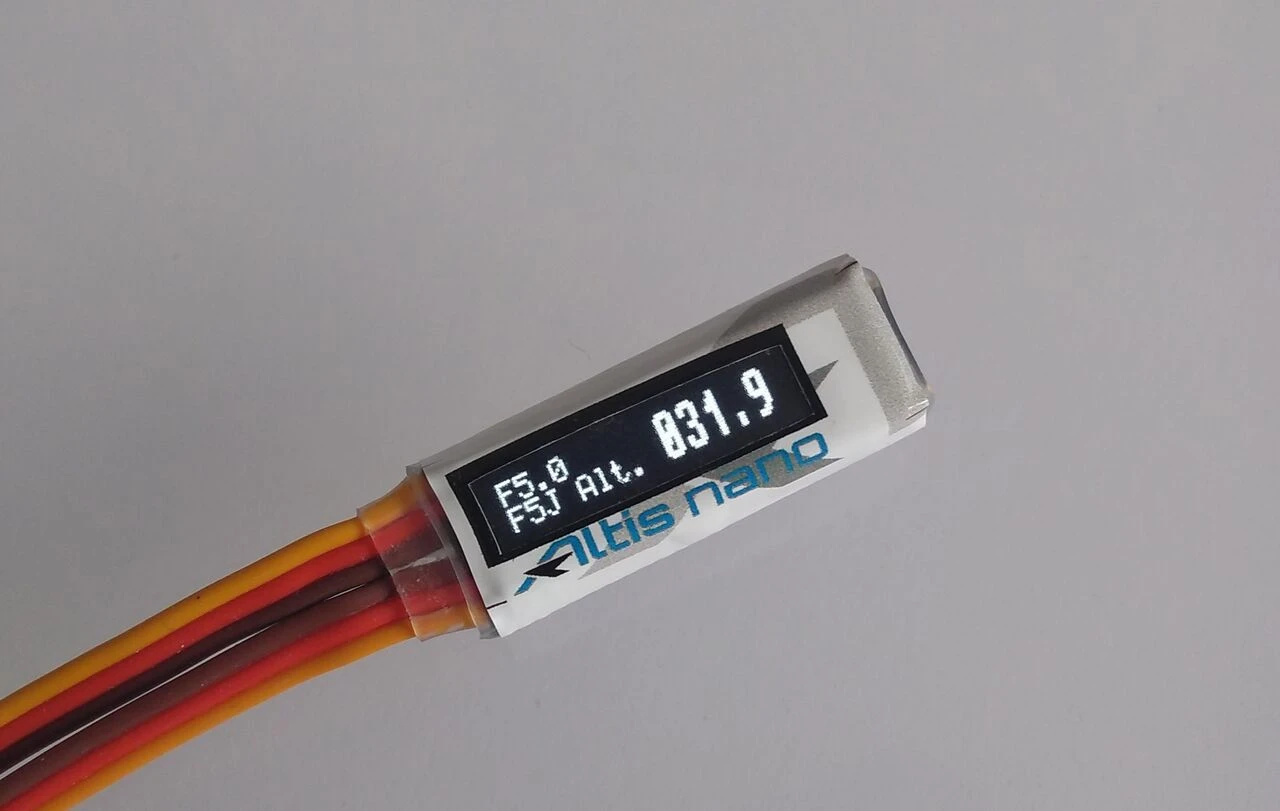

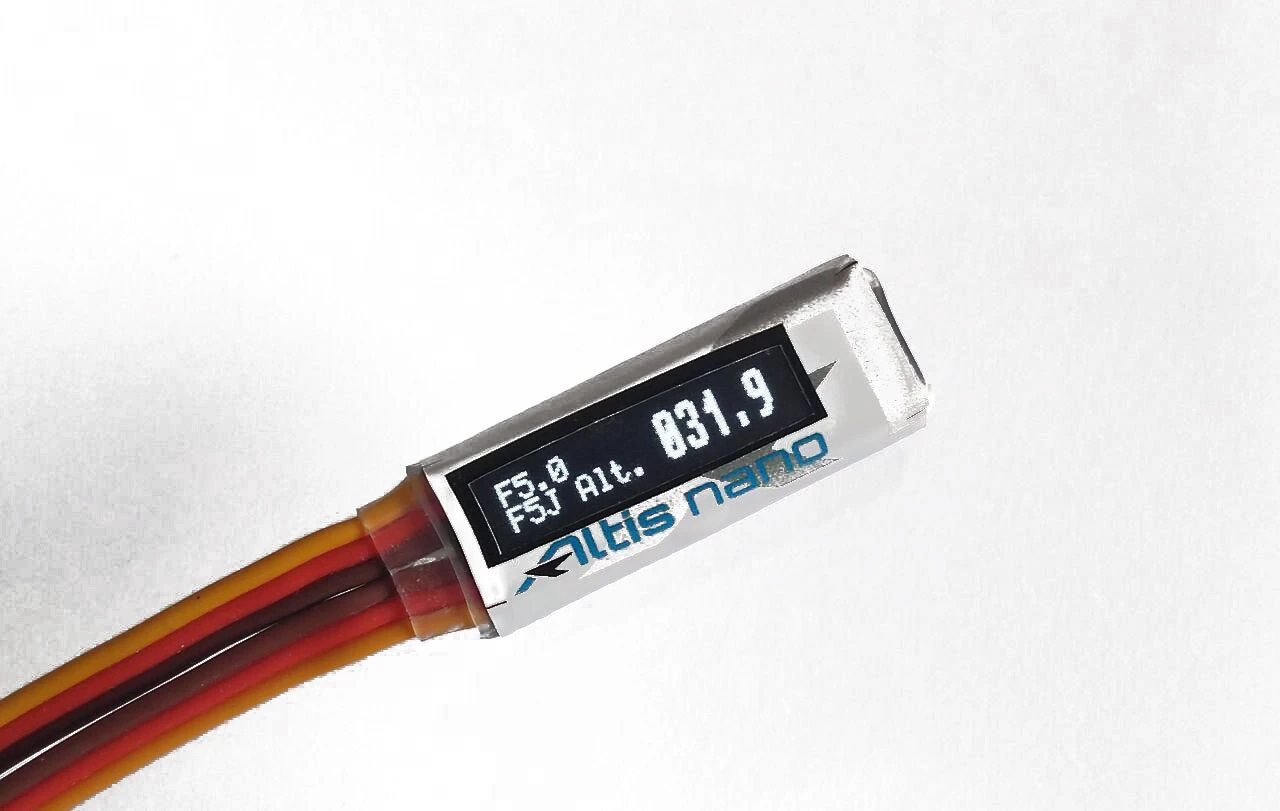

Live screen allows you to read the data easily from the integrated OLED display all the time

Beat your Friends
Simply choose your competition from the list and show your friends who’s the best pilot

Record and Analyze
Integrated flash memory allows you to record your flights and later to analyze them comfortably using Altis Flight Manager

Rich Telemetry Support
Have the flight data always in view using telemetry of various brands, with fast reacting vario you didn’t miss your best performance

General Specifications

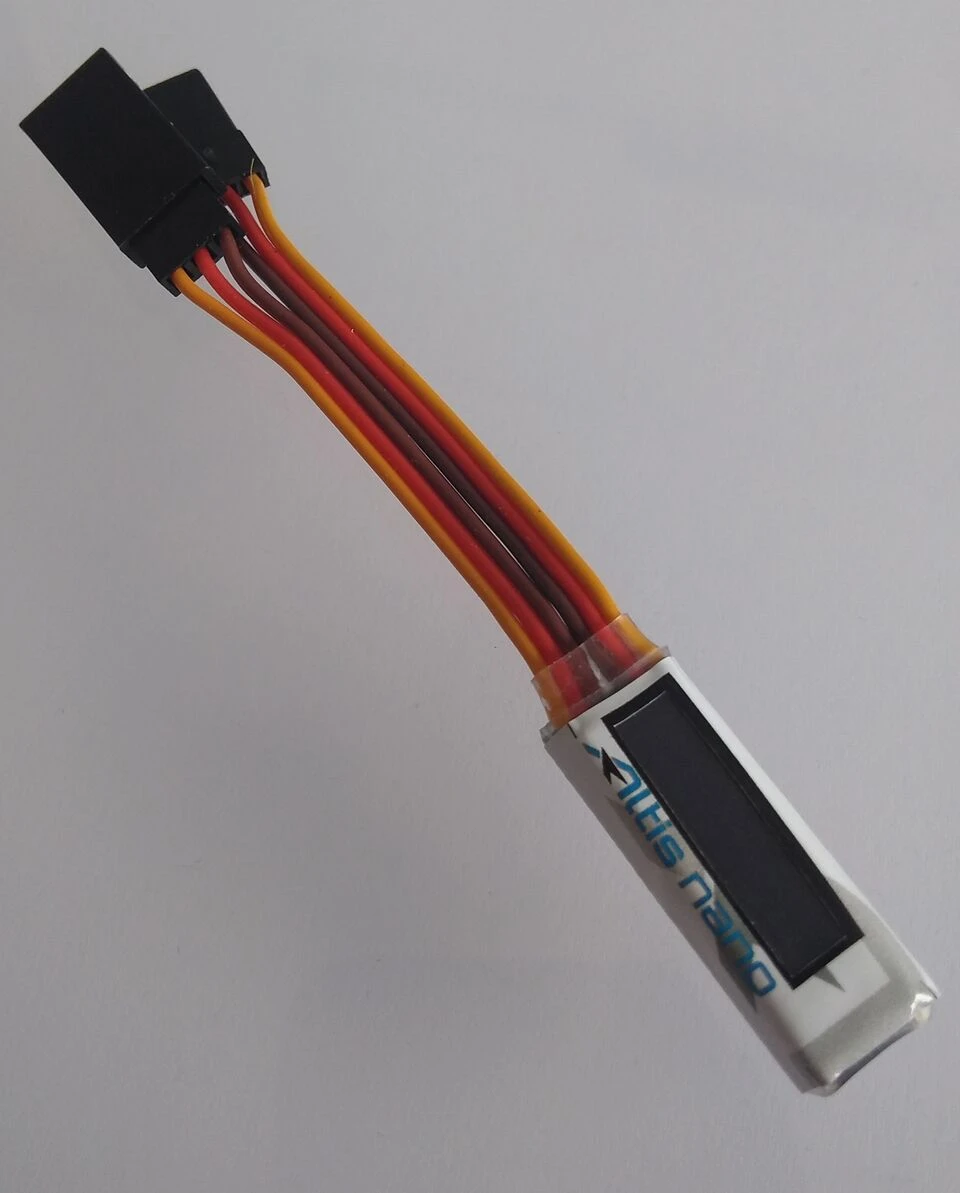

Dimensions: 29 x 11.5 x 6.5mm, cable length approx. 6cm
Weight: 6g with JR cable
Power supply range: 4 – 12.6V
High contrast OLED display

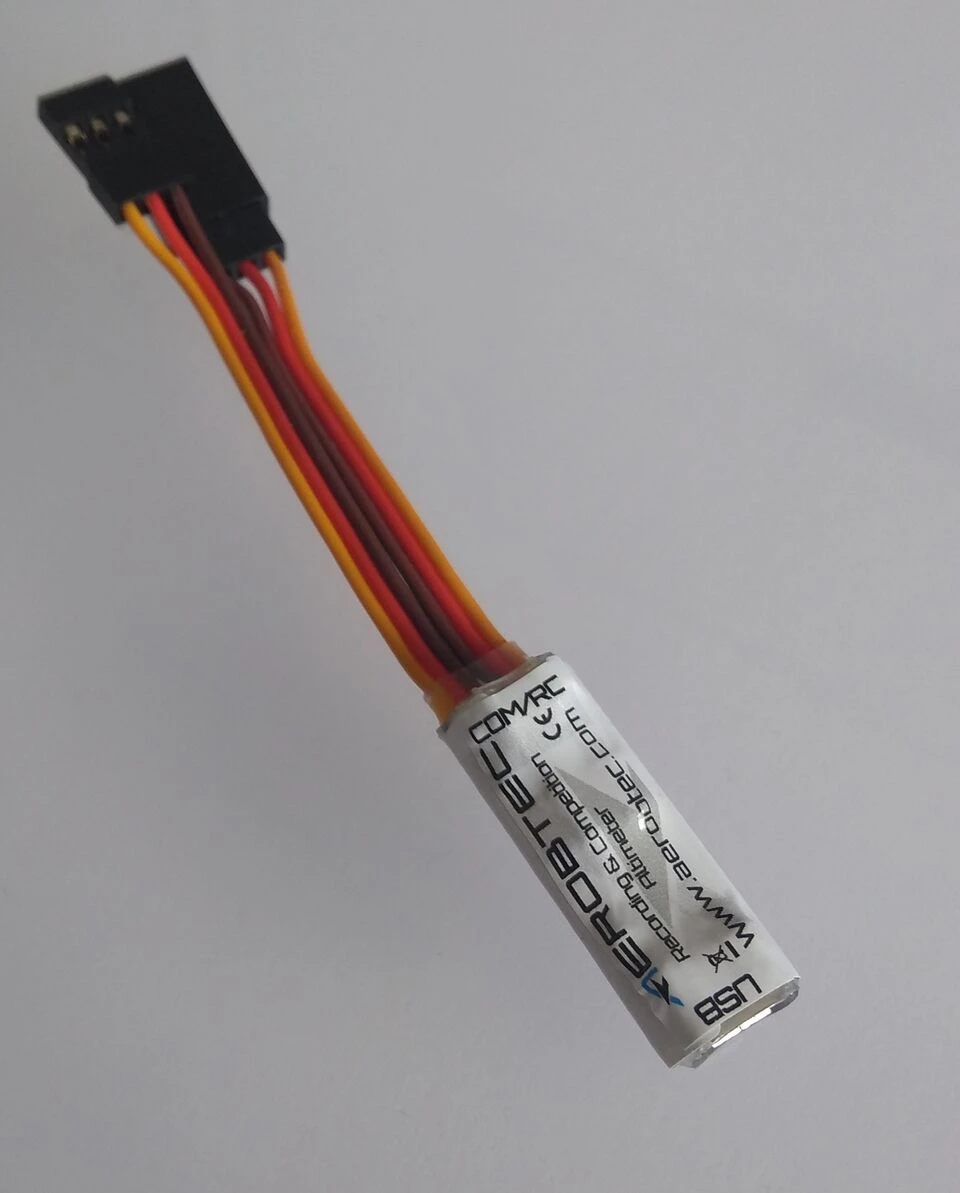

Integrated USB

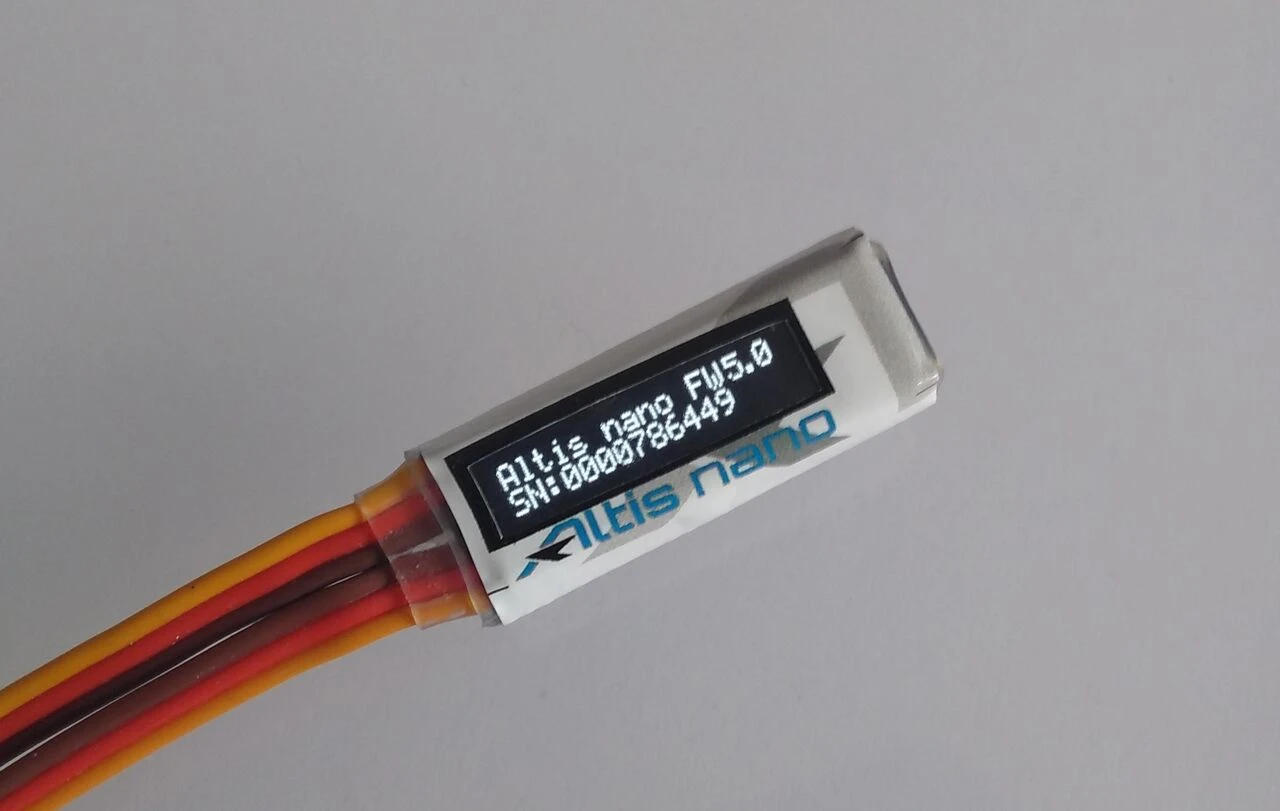

Upgradeable firmware
Altis Flight Manager software for Windows

Competitions
Support for all existing competition rules – FW2.x
Special competition firmwares:
F5J FAI (FAI certified firmware) – FW5.x
ALES – (100, 150, 200m preset, configurable via keypad or PWM in) – FW6.x
F5J Greek (local Greek F5J like competition) – FW7.x
RCEV – (like F5J FAI but with motor restart option) – FW8.x

Recording
Memory: 7.91MB (Several days)
Sample time: 0.1 – 25.5s (user selectable with step 0.1s)
Logging: altitude, voltage, temperature,, PWM In/Out

Telemetry
Rich telemetry support for all relevant RC systems
Available telemetry data:
High precision altimeter
Fast reacting vario with auto adaptive filter
Pressure
PWM In/Out value
F5J height

Restarts
The default firmware as supplied is F5J legal (V5.1 as I type) so the motor cannot be used again after powering off. However the user can easily update to V1.1 which allows restarts.

HyperFlight Safety Warning
There is discussion of the Altis causing power loss and subsequent crashes in this RCGroups thread, see especially post #24 onwards. The consensus is that the crimping is potentially unreliable on both the Altis and the ESC wiring and the best way of improving reliability is to wire an additional positive and negative wire from the ESC to the receiver in parallel to the Altis.
