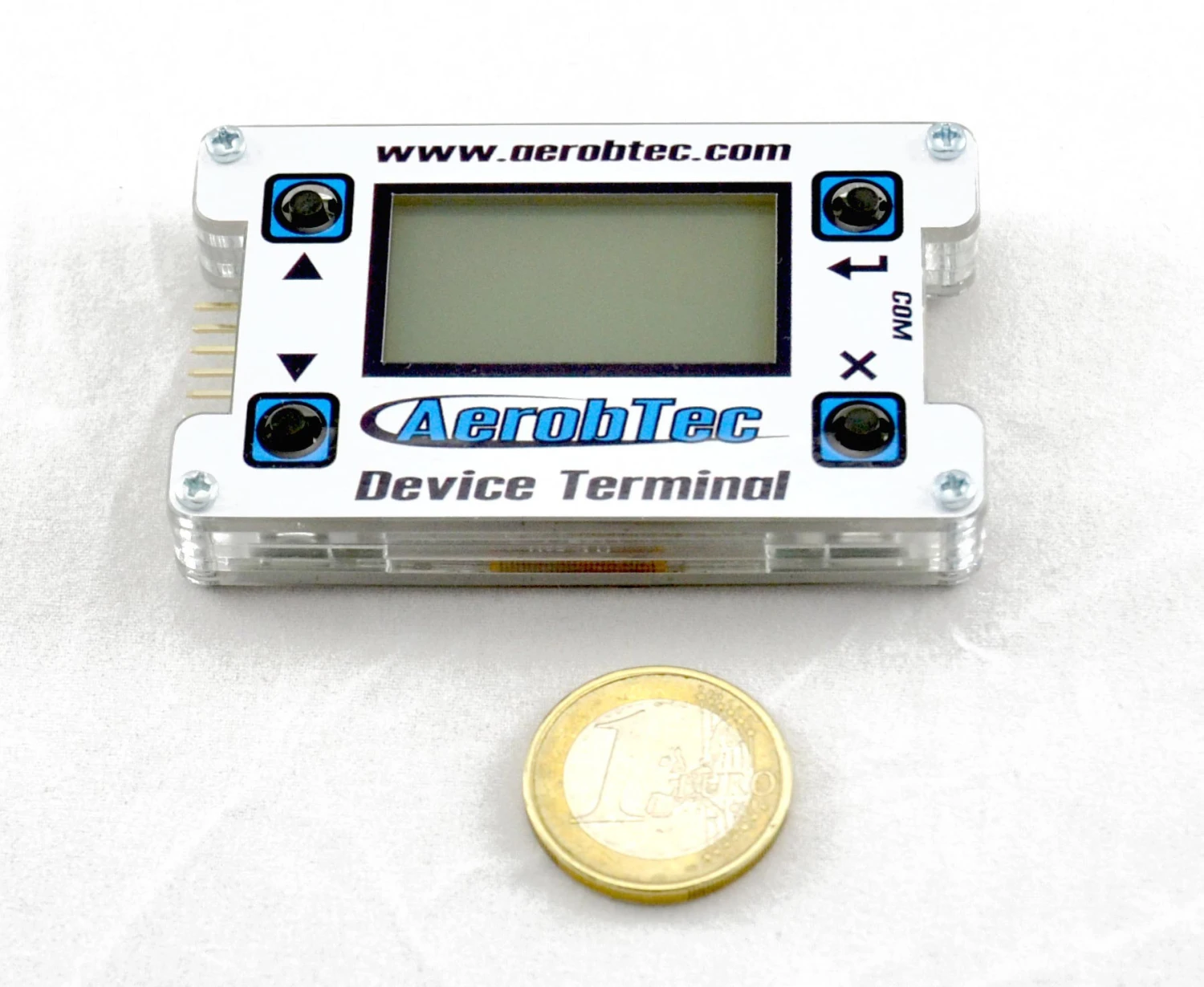

Aerobtec Altis Terminal

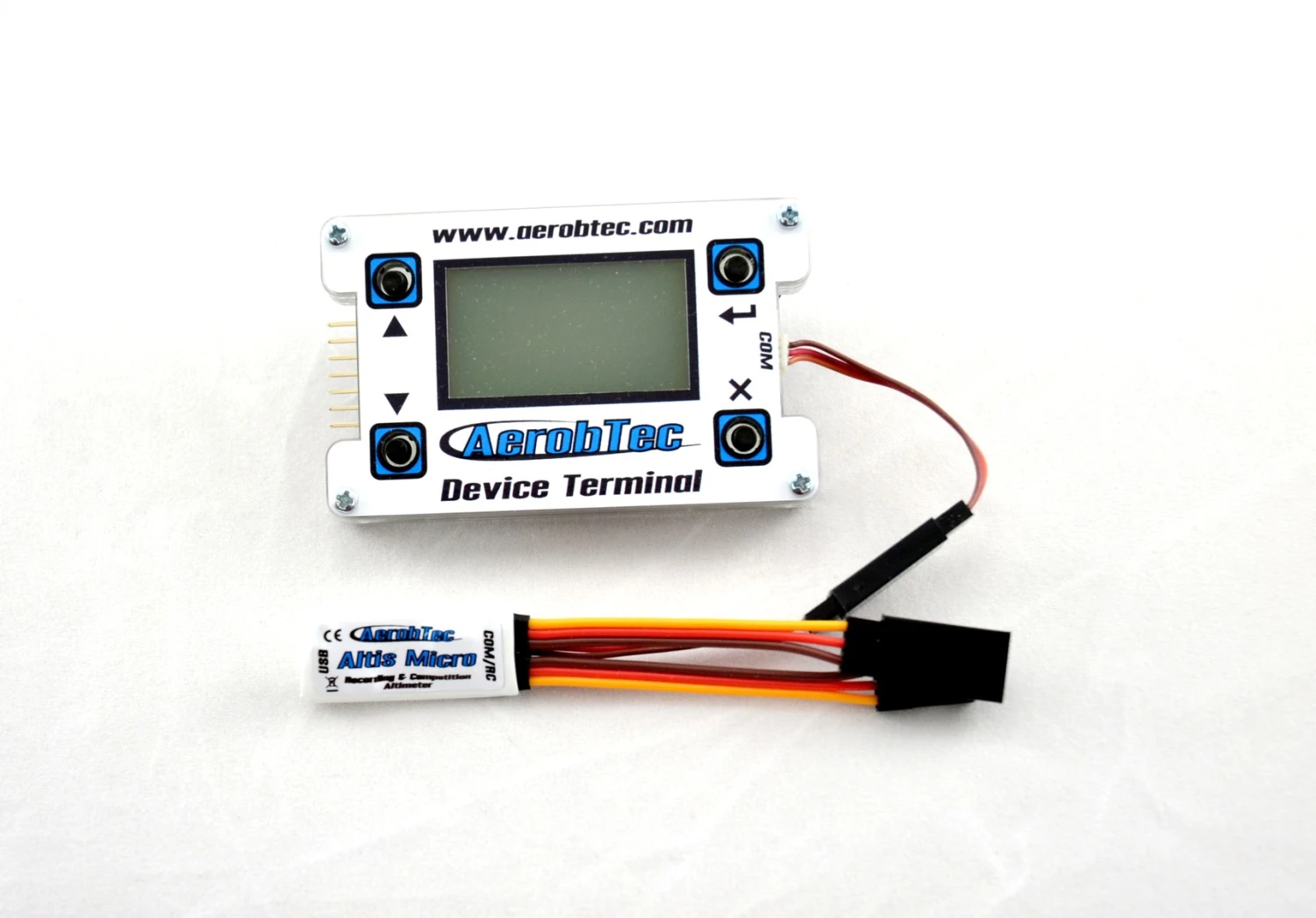

The Aerobtec Altis Device Terminal is can be used as a display for the new Altis Micro.
It also works as a battery tester, a PWM display and tester (to check out receivers) and a servo tester.
It both generates and measures PWM servo pulse trains.

• Measure Li-Poly Batteries
• Measure voltages
• Display PWM input from RC receiver
• Display RPM with additional RPM probe
• Servo tester with advanced functionalities

Aerobtec Altis Terminal Specifications
Dimensions	71 x 45 x 10 mm
Weight	38g
Operating temperature	0ºC – 50ºC
Power supply range	4.0V – 8.4V, from USB adapter or from aircraft fuselage (via Altis Micro), from measured Li-poly battery or from RC In connector
Input voltage range	Cell 1 : 8.4V, Cell 2 – Cell 6 : 0V – 30V
Servo tester	Output 50Hz / 1.5ms or 550Hz / 0.75ms
Graphical display	128×64 pixels
Firmware	Upgradeable via PC
Optional accessories	Aerobtec Altis Micro
